Model 82 Essential Half-Bridge Series
Model 82 (180W–250W)Cost-effective 180W–250W power supply engineered for basic commercial desktops, office computers, and institutional projects with 164–264V high-voltage grid input.
Product Specifications
Full breakdown (11 specs) ↓Platform overview
Designed around the brief.
Built to rigorous industrial standards with verified thermal dynamics, precision topology control, and high-efficiency power delivery engineered for heavy compute demands.
≥90%
80 PLUS Gold certified
≤50 µs
Fast recovery response
9-Fold
Hardware safety suite
>100k h
MTBF industrial rating
Custom wattage bins (550W–1050W), bespoke cable harness lengths, custom fan curves, and private label chassis grilles available for enterprise orders.
Inquire for custom platform specsSimplified half-bridge circuit optimized for high volume production and cost competitiveness
Configuration and availability require confirmation for the final product program.
High-voltage 164–264V input tolerance suitable for standard 220V/230V electrical networks
Configuration and availability require confirmation for the final product program.
Equipped with Passive PFC choke maintaining power factor above 0.76
Configuration and availability require confirmation for the final product program.
Low-noise 1000 RPM baseline fan speed providing peaceful office acoustics
Configuration and availability require confirmation for the final product program.
Multi-stage circuit protection suite guarding against over-voltage, overload, and short circuits
Configuration and availability require confirmation for the final product program.
Broad motherboard and CPU compatibility for basic desktop workstations
Configuration and availability require confirmation for the final product program.
Architecture & Hardware Showcase
Precision engineering, inside and out.
Direct view into component selection, structural PCB layout, and thermal topology.
Chassis & Enclosure
Durable matte black / industrial enclosure designed for optimal ventilation and component protection.

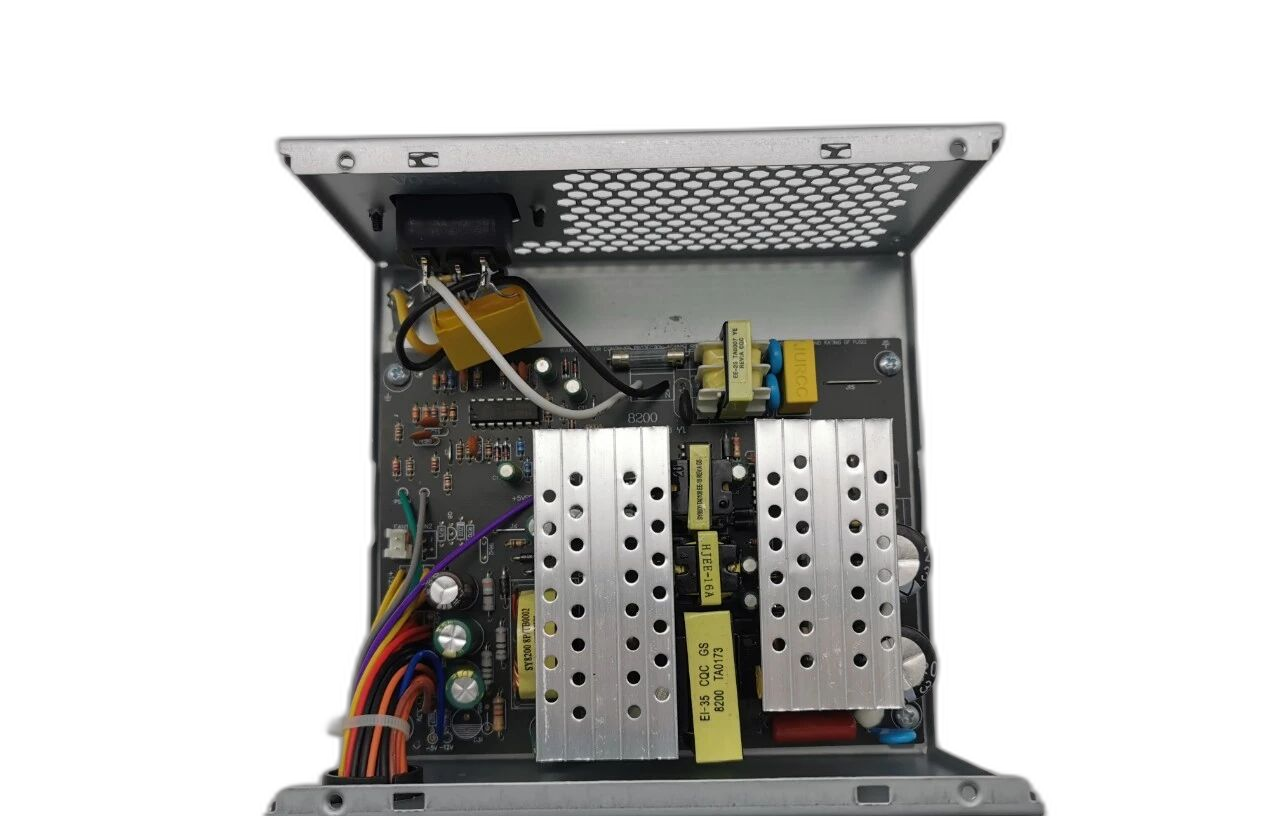

Internal Architecture & Layout 1
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Internal Architecture & Layout 2
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Structured data
Specifications
Model 82 is ENCON's entry baseline power platform designed for high-volume commercial installations where budget optimization is essential. Built with classic half-bridge topology, passive PFC, and standard ATX cabling, it fulfills all fundamental power delivery and safety requirements.
Model 82 Essential Half-Bridge Series Engineering Datasheet
PDF · Mechanical dimensions & pinouts
Manufacturing & Test Standards
- Chroma 8000 automated test validation
- 100% Hi-Pot & thermal burn-in tested
- Intel ATX 3.1 & PCIe 5.1 native certification
- Taiwan / Japanese 105°C primary capacitor tier
Need custom voltage tolerances, custom cable harnesses or compliance records? Contact our power engineering team →
- Rated output
- 180 W – 250 W
- Efficiency tier
- ~78% entry baseline efficiency
- Topology
- Half-Bridge Architecture + Passive PFC
- Standard
- Intel ATX 12V 2.31
- AC input range
- 164 – 264 V (High Voltage grid support)
- Dynamic response
- ≤50 µs transient recovery time
- Power factor
- >0.76 (Passive PFC)
- Cooling fan
- 120 mm / 80 mm fan (min 1000 RPM)
- Modularity
- Direct-wire standard cabling
- Protection suite
- Brown-out, OVP, UVP, OCP, OPP, SCP, ESD, Surge
- MTBF
- >60,000 hours
PC Power Supply Engineering
PC Power Supply OEM/ODM & Technical Support
Direct technical & commercial access for desktop, gaming rig, and workstation power supplies. Discuss wattage sizing (550W–1050W), ATX 3.1 & 12V-2x6 GPU delivery, modular cabling, and PC chassis compatibility with our engineering team.
Direct FAE evaluation for GPU transient spikes (200% excursion), 12V-2x6 cable clearance, and motherboard 24-pin compatibility within 24 hours.
Golden engineering units shipped in 3–5 days to validate PC chassis mounting, FDB fan acoustic profiles, and GPU power delivery under real loads.
Custom embossed/braided modular cables, customized casing finishes (Black/White), branded fan grilles, and bilateral NDA protection.
Complete ATE automated test reports (ripple <30mV, voltage regulation <±1.5%), cross-load efficiency curves, thermal imaging, and 3D CAD STEP files.
PC Power Supply Project Roadmap
- 1Platform & Wattage Selection: Choose standard wattage (550W–1050W), modular format (Full/Semi/Direct), or custom embossed cable lengths.
- 2Chassis & GPU Compatibility Review (<24h): Our FAEs verify 140mm chassis depth fitment, 12V-2x6 thermal safety, and thermal airflow curves.
- 3EVT Prototype & Bench Test: Receive working samples for system smoke test & motherboard validation, followed by mass production.
For urgent PC system integration, gaming rig bids, or high-volume PSU orders, contact our power supply engineering team via larry@encon.ltd for immediate assistance.
Downloads
Formal product documents are not yet available.
Ask ENCON for the latest approved datasheet or certification document.
