RGPS-850W White RGB
RGPS-850W (850W)High-efficiency 850W 80 PLUS Gold fully modular power supply built to Intel ATX 3.1 and PCIe 5.1 standards with native 12V-2x6 cable, 100% Japanese capacitors, and smart ECO 0 RPM RGB cooling.
Product Specifications
Full breakdown (12 specs) ↓Platform overview
Designed around the brief.
Built to rigorous industrial standards with verified thermal dynamics, precision topology control, and high-efficiency power delivery engineered for heavy compute demands.
≥90%
80 PLUS Gold certified
≤50 µs
Fast recovery response
9-Fold
Hardware safety suite
>100k h
MTBF industrial rating
Custom wattage bins (550W–1050W), bespoke cable harness lengths, custom fan curves, and private label chassis grilles available for enterprise orders.
Inquire for custom platform specsIntel ATX 3.1 & PCIe 5.1 compliance with native 12V-2x6 high-current power delivery for NVIDIA GeForce RTX 40/50 series
Configuration and availability require confirmation for the final product program.

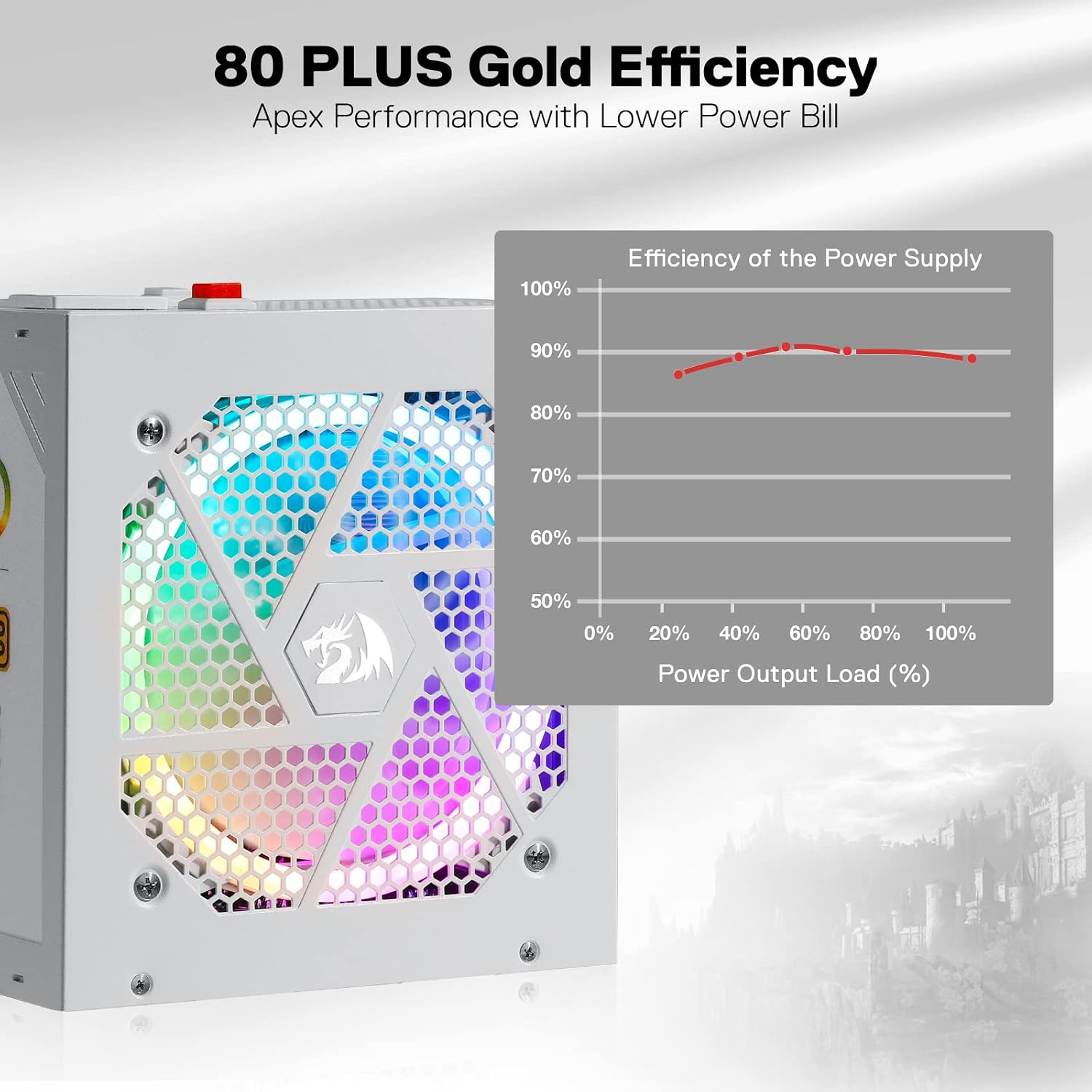

80 PLUS Gold certified efficiency delivering up to 90% power conversion with reduced waste heat and lower acoustics
Configuration and availability require confirmation for the final product program.
100% Japanese premium electrolytic capacitors ensuring rock-solid voltage stability and esports-grade long-term reliability
Configuration and availability require confirmation for the final product program.
Smart ECO Zero RPM fan mode maintaining complete acoustic silence until internal component temperatures hit 60°C
Configuration and availability require confirmation for the final product program.
9 customizable RGB lighting presets with 26 color variations, featuring low-power LED control to complement gaming rigs
Configuration and availability require confirmation for the final product program.
Advanced LLC resonant tank paired with DC-DC synchronous rectification for tight voltage regulation and clean DC rails
Configuration and availability require confirmation for the final product program.
Pure white chassis finish with fully modular flat white cables for pristine cable management and case aesthetics
Configuration and availability require confirmation for the final product program.
Comprehensive industrial protection suite including Over Voltage, Over Current, Over Power, Over Temperature, and Short Circuit
Configuration and availability require confirmation for the final product program.
Architecture & Hardware Showcase
Precision engineering, inside and out.
Direct view into component selection, structural PCB layout, and thermal topology.
Chassis & RGB Fan
Pure white enclosure with honeycomb ventilation grille and addressable RGB fan.

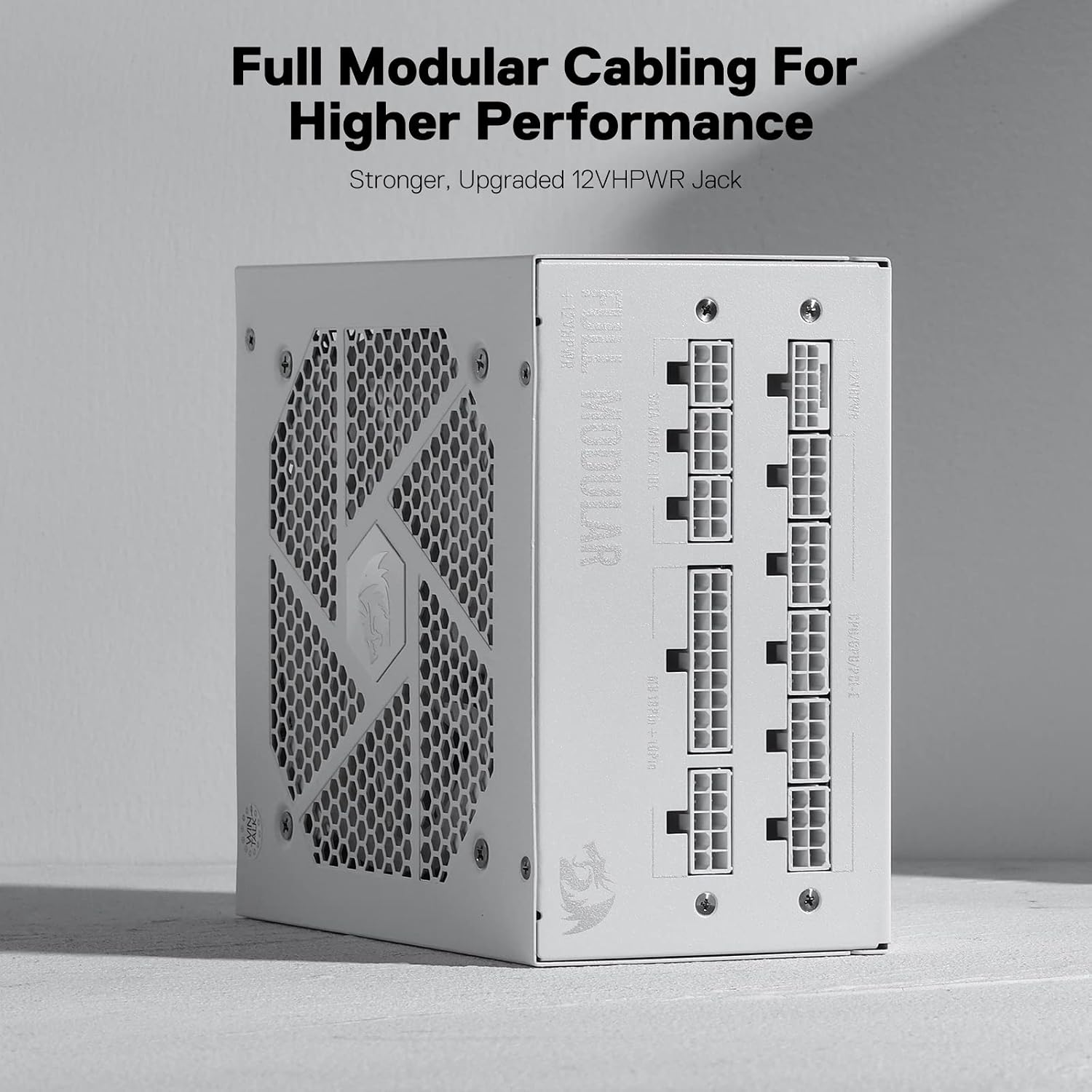

Modular Backplane
Direct-soldered full modular interface for high-current 12V-2x6 and EPS delivery.

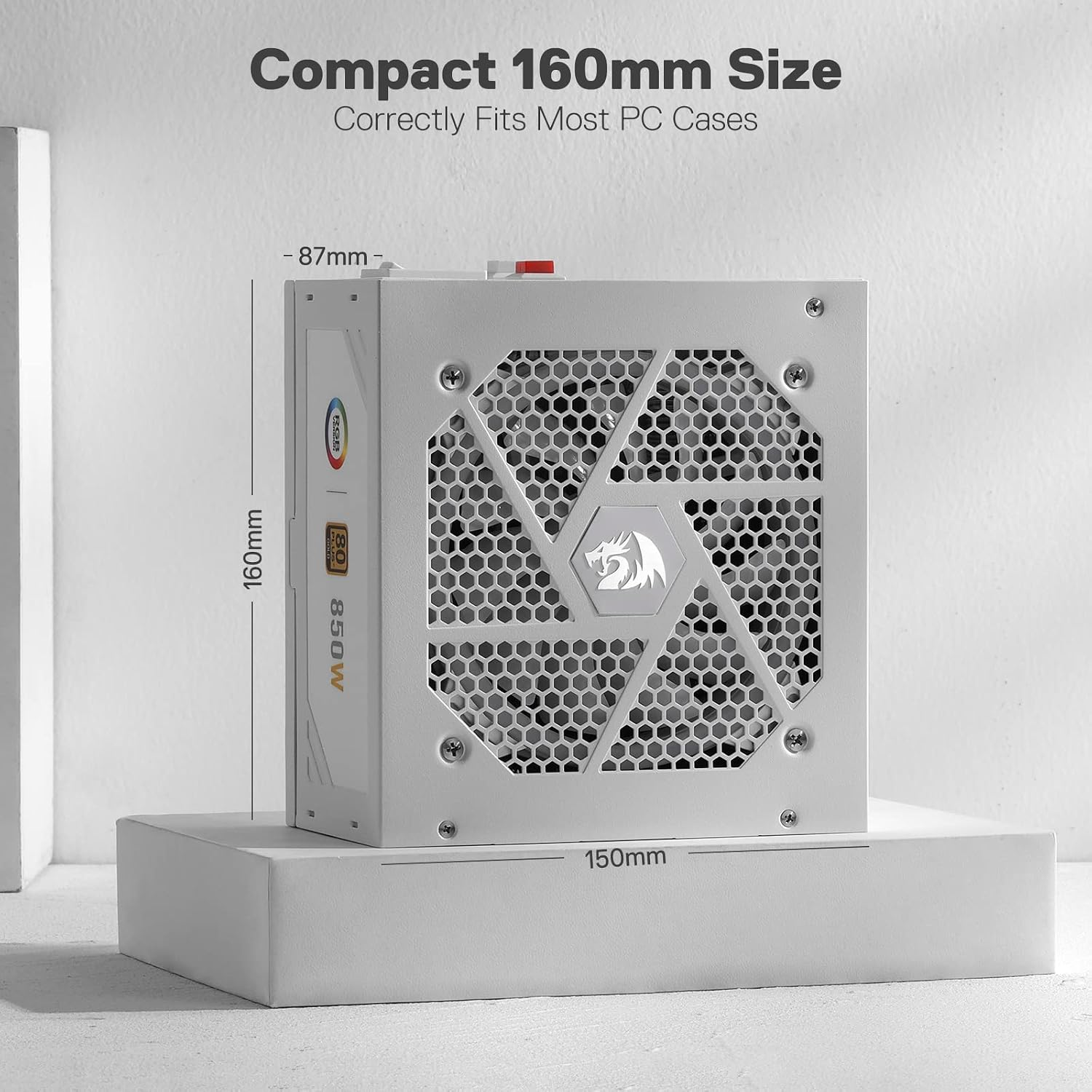

Side Profile & Branding
Embossed 850W 80 PLUS Gold badging and compact 160mm depth chassis profile.

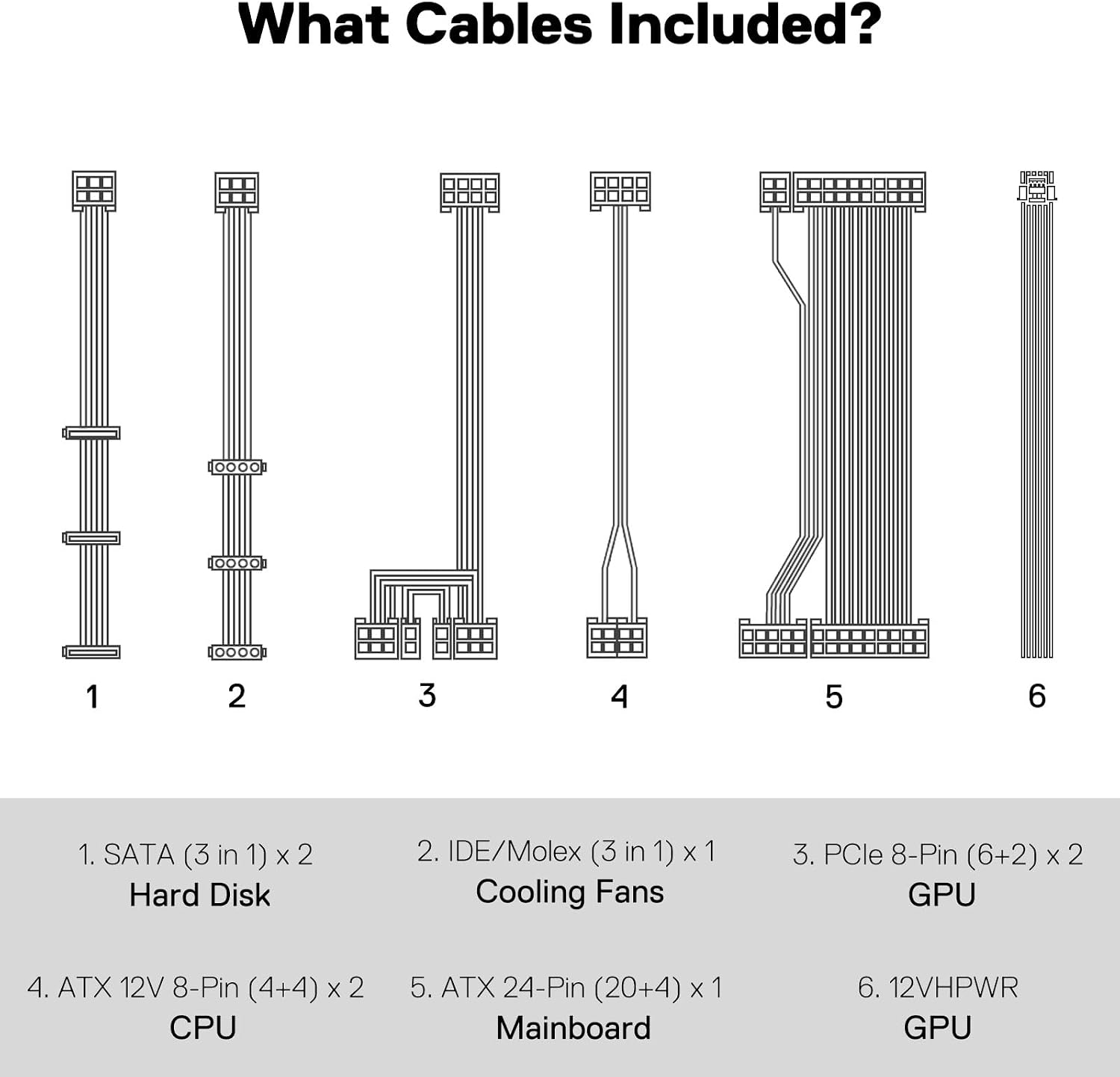

Modular Cable Kit
Comprehensive set of flexible flat white ribbon cables for effortless routing.
Retail Packaging
High-grade packaging with ATX 3.1 and PCIe 5.1 certification documentation.

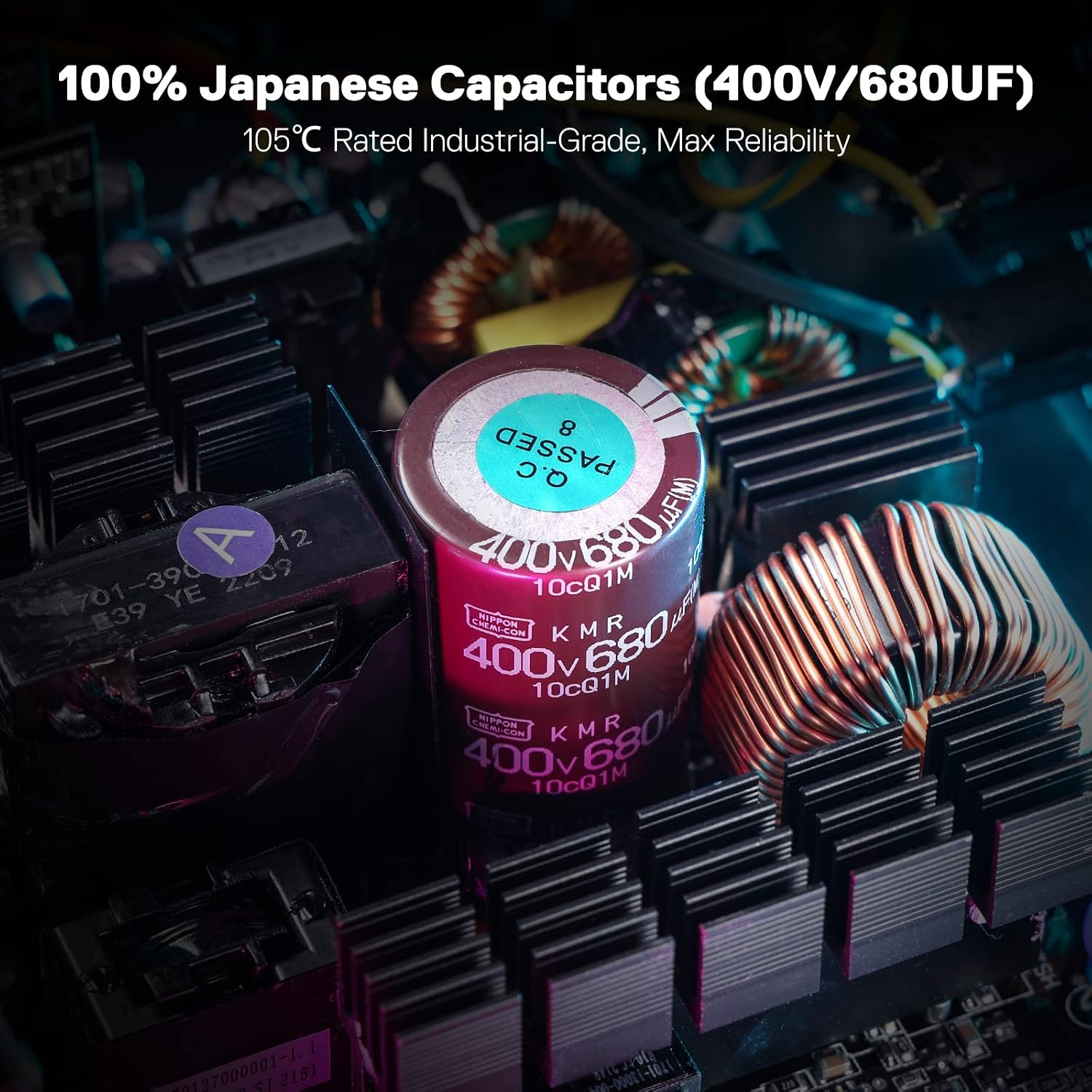

Internal Architecture
High-density PCB layout with 100% Japanese capacitors and dual heatsink cooling.

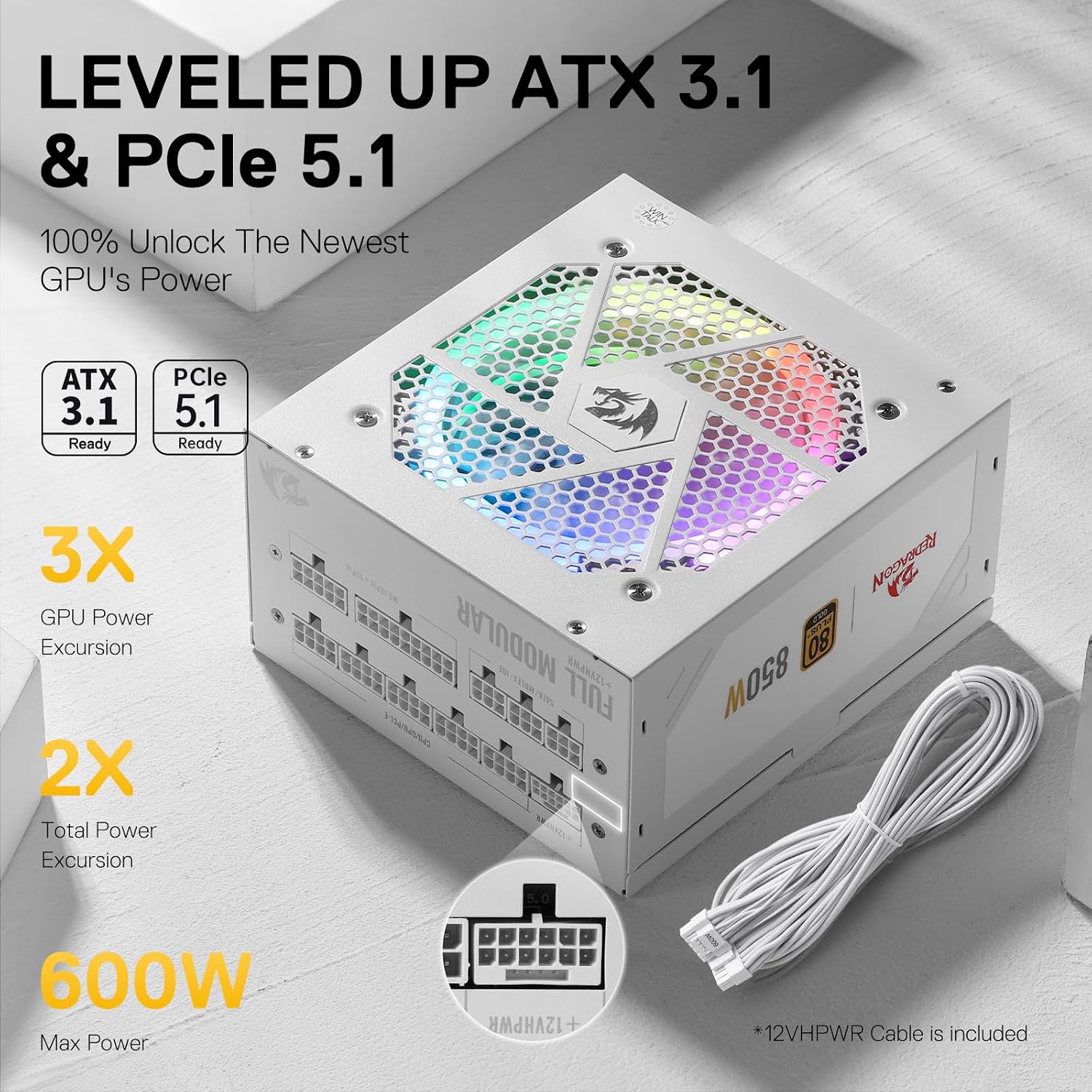

12V-2x6 Native Header
Dedicated 12V-2x6 connector delivering up to 600W to modern high-TDP GPUs.
Structured data
Specifications
The RGPS-850W White edition is engineered for modern high-demand gaming rigs and workstations. Featuring native ATX 3.1 & PCIe 5.1 compliance with a dedicated 12V-2x6 GPU power connector for RTX 40 and 50 series graphics cards, this unit employs active PFC + LLC resonant topology and DC-DC conversion. Premium 100% Japanese electrolytic capacitors guarantee exceptional electrical stability, while the 160mm compact chassis houses a smart ECO RGB fan with zero-RPM silent operation under 60°C. Finished in a stunning pure white enclosure with matching white flat modular cables.
RGPS-850W White RGB Engineering Datasheet
PDF · Mechanical dimensions & pinouts
Manufacturing & Test Standards
- Chroma 8000 automated test validation
- 100% Hi-Pot & thermal burn-in tested
- Intel ATX 3.1 & PCIe 5.1 native certification
- Taiwan / Japanese 105°C primary capacitor tier
Need custom voltage tolerances, custom cable harnesses or compliance records? Contact our power engineering team →
- Rated output
- 850 W
- Efficiency tier
- 80 PLUS Gold (≥90% typical efficiency)
- Topology
- Active PFC + LLC Resonant + DC-DC
- Standard
- Intel ATX 3.1 / PCIe 5.1 Native
- AC input range
- 100 – 240 V AC (Full Range global input)
- Cooling fan
- 140 mm Smart ECO RGB fan (0 RPM silent mode below 60°C)
- Modularity
- Full Modular (flexible flat white ribbon cabling)
- Protection suite
- OVP, UVP, OCP, OPP, OTP, SCP
- PCIe 5.1 connector
- Native 12V-2x6 (16-Pin) for RTX 40/50 series
- Capacitors
- 100% Japanese industrial-grade 105°C capacitors
- RGB lighting
- 9 backlighting modes (26 selectable colors)
- Dimensions
- 160 mm x 150 mm x 86 mm (compact depth)
PC Power Supply Engineering
PC Power Supply OEM/ODM & Technical Support
Direct technical & commercial access for desktop, gaming rig, and workstation power supplies. Discuss wattage sizing (550W–1050W), ATX 3.1 & 12V-2x6 GPU delivery, modular cabling, and PC chassis compatibility with our engineering team.
Direct FAE evaluation for GPU transient spikes (200% excursion), 12V-2x6 cable clearance, and motherboard 24-pin compatibility within 24 hours.
Golden engineering units shipped in 3–5 days to validate PC chassis mounting, FDB fan acoustic profiles, and GPU power delivery under real loads.
Custom embossed/braided modular cables, customized casing finishes (Black/White), branded fan grilles, and bilateral NDA protection.
Complete ATE automated test reports (ripple <30mV, voltage regulation <±1.5%), cross-load efficiency curves, thermal imaging, and 3D CAD STEP files.
PC Power Supply Project Roadmap
- 1Platform & Wattage Selection: Choose standard wattage (550W–1050W), modular format (Full/Semi/Direct), or custom embossed cable lengths.
- 2Chassis & GPU Compatibility Review (<24h): Our FAEs verify 140mm chassis depth fitment, 12V-2x6 thermal safety, and thermal airflow curves.
- 3EVT Prototype & Bench Test: Receive working samples for system smoke test & motherboard validation, followed by mass production.
For urgent PC system integration, gaming rig bids, or high-volume PSU orders, contact our power supply engineering team via larry@encon.ltd for immediate assistance.
Downloads
Formal product documents are not yet available.
Ask ENCON for the latest approved datasheet or certification document.
