PSU007 850W Gold RGB
PSU007 (850W Gold)High-performance 850W 80 PLUS Gold fully modular power supply featuring 100% Japanese capacitors, LLC + DC-DC architecture, 140mm RGB cooling with 0 RPM quiet mode, and flat black modular cables.
Product Specifications
Full breakdown (12 specs) ↓Platform overview
Designed around the brief.
Built to rigorous industrial standards with verified thermal dynamics, precision topology control, and high-efficiency power delivery engineered for heavy compute demands.
≥90%
80 PLUS Gold certified
≤50 µs
Fast recovery response
9-Fold
Hardware safety suite
>100k h
MTBF industrial rating
Custom wattage bins (550W–1050W), bespoke cable harness lengths, custom fan curves, and private label chassis grilles available for enterprise orders.

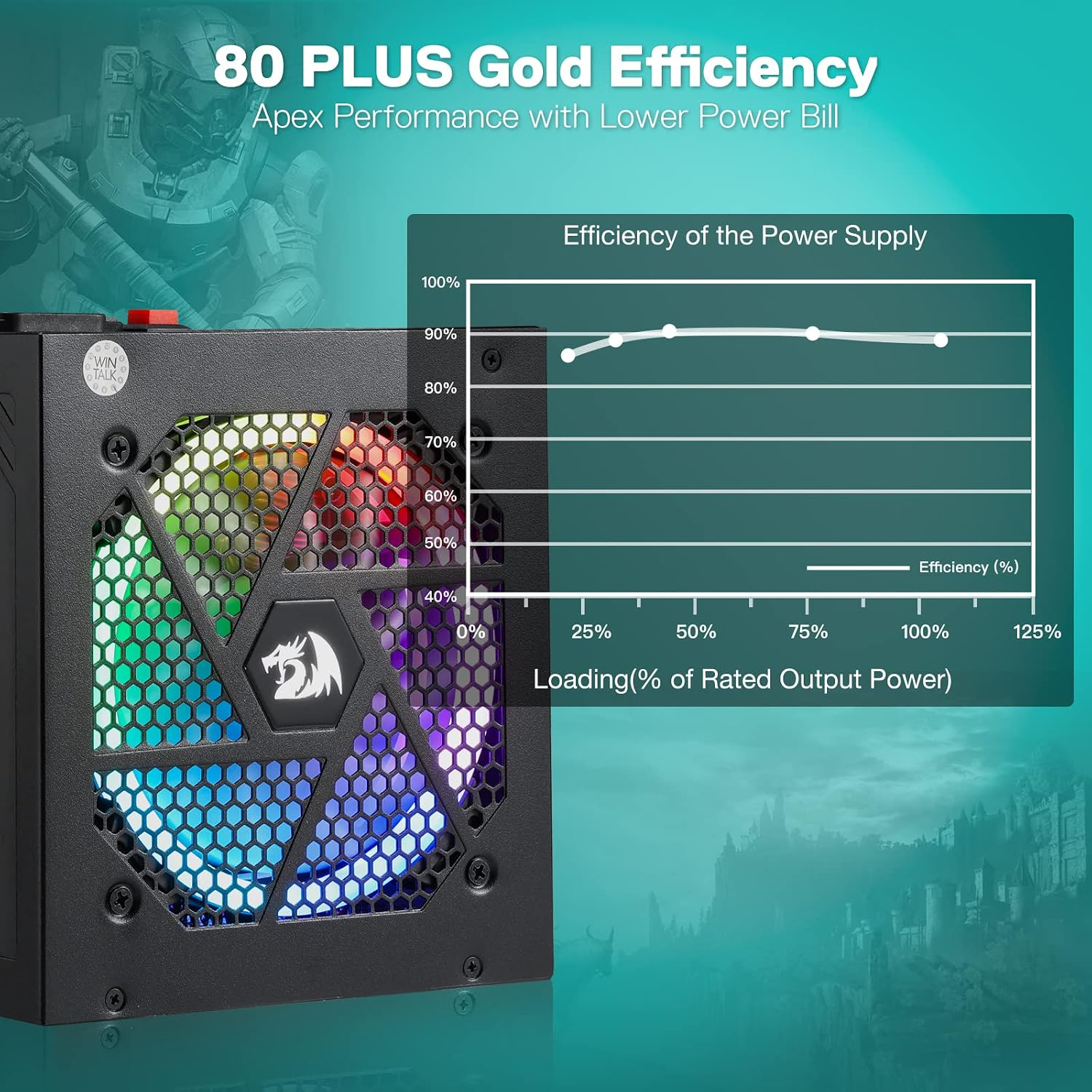

Inquire for custom platform specs80 PLUS Gold certification delivering up to 90% efficiency for reduced thermal heat and lower noise levels
Configuration and availability require confirmation for the final product program.
Built with 100% Japanese capacitors for exceptional reliability, durability, and esports-grade stability
Configuration and availability require confirmation for the final product program.
Zero RPM Mode fan profile keeping the 140mm fan completely stopped until temperatures reach 60°C
Configuration and availability require confirmation for the final product program.
9 RGB lighting modes with 26 selectable colors and low-consumption circuitry to match gaming rig themes
Configuration and availability require confirmation for the final product program.
Mainstream LLC resonant + DC-DC structure providing clean, stable voltage to high-demand CPUs and GPUs
Configuration and availability require confirmation for the final product program.
Dual CPU 4+4Pin EPS connectors providing stable power delivery for enthusiast and server-grade motherboards
Configuration and availability require confirmation for the final product program.
Flat black fully modular cables reducing clutter, improving airflow, and simplifying installation
Configuration and availability require confirmation for the final product program.
Comprehensive circuit protections: Over Voltage, Under Voltage, Over Current, Over Power, Over Temperature, Short Circuit
Configuration and availability require confirmation for the final product program.
Architecture & Hardware Showcase
Precision engineering, inside and out.
Direct view into component selection, structural PCB layout, and thermal topology.
Chassis & RGB Fan
Matte black chassis with honeycomb ventilation grille and multi-zone RGB lighting.

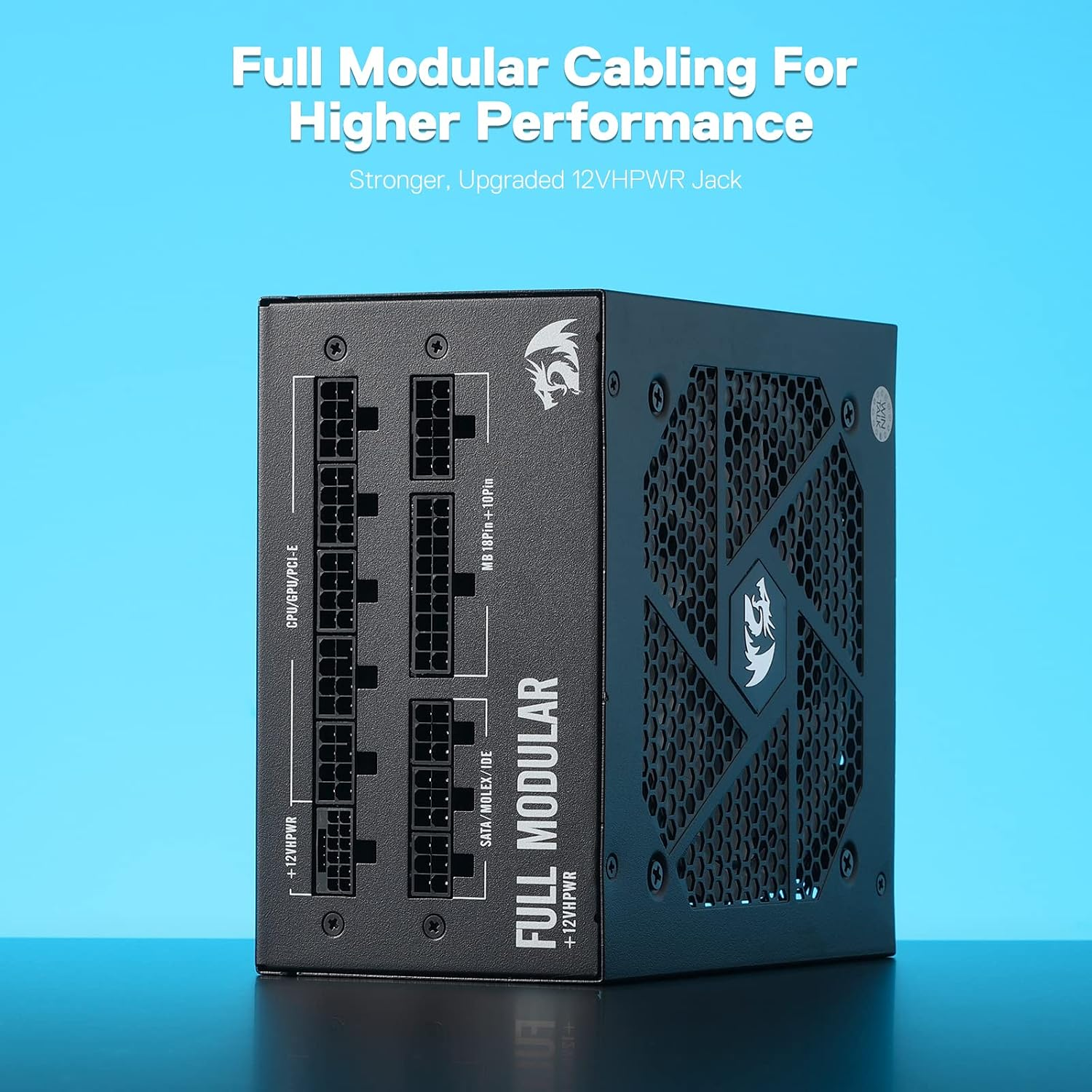

Modular Interface
Direct-soldered modular backplane for PCIe, CPU, and SATA connections.
Side Profile & 850W Gold Branding
Side branding showcasing 850W rating and 80 PLUS Gold certification.

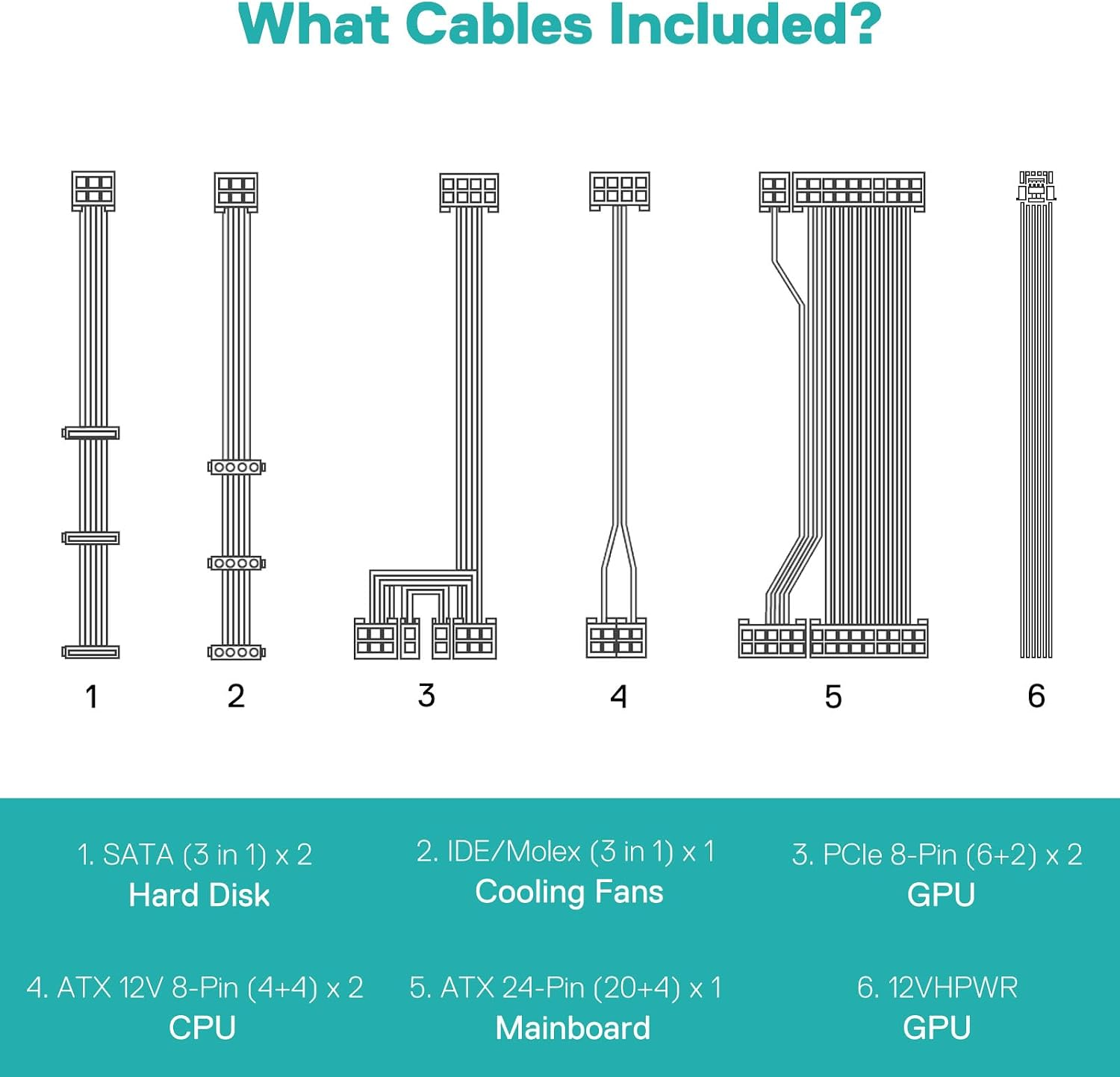

Flat Modular Cable Set
Complete set of flexible flat black ribbon cables for clean cable routing.
Retail Packaging
Full color retail packaging detailing features and technical specifications.

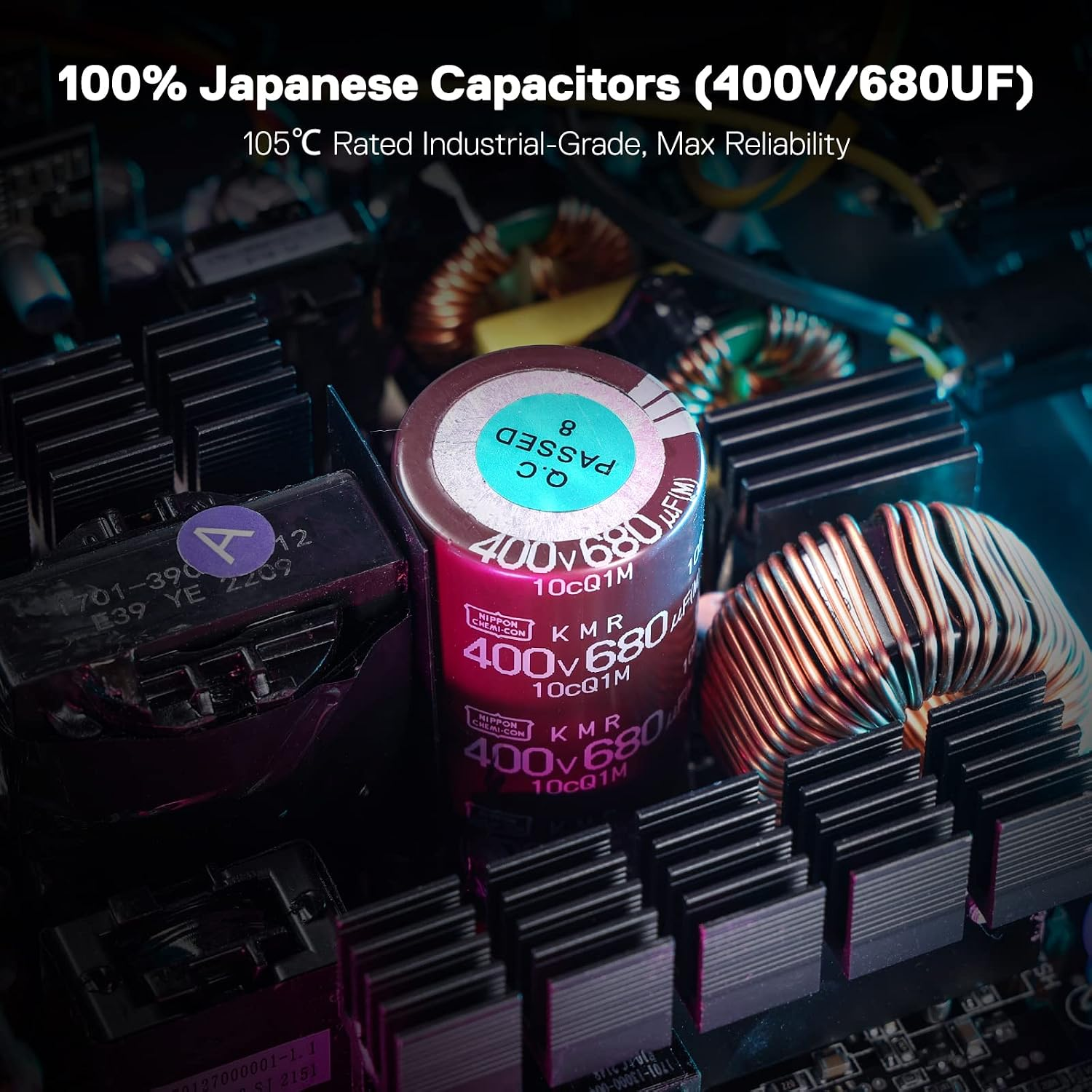

Internal PCB & Japanese Capacitors
Internal circuit layout featuring 100% Japanese capacitors and dual heat sinks.
Structured data
Specifications
The PSU007 850W Gold delivers high-efficiency power delivery and vibrant aesthetics for custom gaming builds. Certified 80 PLUS Gold with up to 90% efficiency, it incorporates a mainstream LLC resonant tank and DC-DC synchronous rectification for tight voltage control. High-reliability 100% Japanese electrolytic capacitors ensure long-term esports-grade stability. The 160mm compact chassis houses an intelligent 140mm RGB fan equipped with a Zero RPM mode that remains inactive below 60°C, and offers 9 customizable RGB lighting presets across 26 vibrant colors.
PSU007 850W Gold RGB Engineering Datasheet
PDF · Mechanical dimensions & pinouts
Manufacturing & Test Standards
- Chroma 8000 automated test validation
- 100% Hi-Pot & thermal burn-in tested

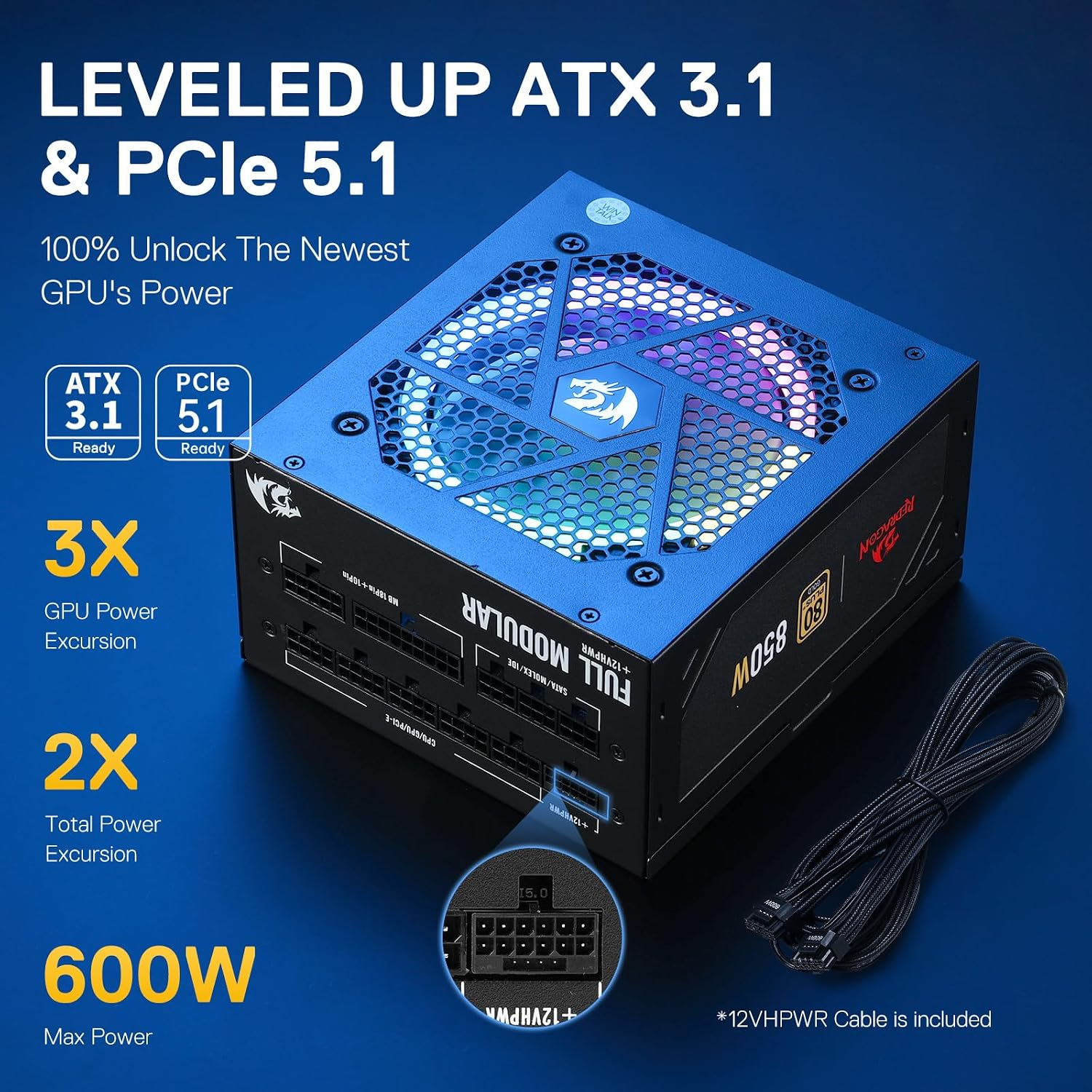

- Intel ATX 3.1 & PCIe 5.1 native certification
- Taiwan / Japanese 105°C primary capacitor tier
Need custom voltage tolerances, custom cable harnesses or compliance records? Contact our power engineering team →
- Rated output
- 850 W
- Efficiency tier
- 80 PLUS Gold (≥90% typical efficiency)
- Topology
- Active PFC + LLC Resonant + DC-DC
- AC input range
- 100 – 240 V AC (Full Range global input)
- Cooling fan
- 140 mm Low Noise Smart ECO RGB fan
- Modularity
- Full Modular (flexible flat black ribbon cables)
- Protection suite
- OVP, UVP, OCP, OPP, OTP, SCP
- Form factor
- Standard ATX12V / EPS12V
- Capacitors
- 100% Japanese industrial-grade capacitors
- RGB lighting
- 9 backlighting modes (26 selectable colors)
- Dimensions
- 160 mm x 150 mm x 86 mm (compact 160mm depth)
- Zero RPM mode
- Fan stays at 0 RPM until internal temp hits 60°C
PC Power Supply Engineering
PC Power Supply OEM/ODM & Technical Support
Direct technical & commercial access for desktop, gaming rig, and workstation power supplies. Discuss wattage sizing (550W–1050W), ATX 3.1 & 12V-2x6 GPU delivery, modular cabling, and PC chassis compatibility with our engineering team.
Direct FAE evaluation for GPU transient spikes (200% excursion), 12V-2x6 cable clearance, and motherboard 24-pin compatibility within 24 hours.
Golden engineering units shipped in 3–5 days to validate PC chassis mounting, FDB fan acoustic profiles, and GPU power delivery under real loads.
Custom embossed/braided modular cables, customized casing finishes (Black/White), branded fan grilles, and bilateral NDA protection.
Complete ATE automated test reports (ripple <30mV, voltage regulation <±1.5%), cross-load efficiency curves, thermal imaging, and 3D CAD STEP files.
PC Power Supply Project Roadmap
- 1Platform & Wattage Selection: Choose standard wattage (550W–1050W), modular format (Full/Semi/Direct), or custom embossed cable lengths.
- 2Chassis & GPU Compatibility Review (<24h): Our FAEs verify 140mm chassis depth fitment, 12V-2x6 thermal safety, and thermal airflow curves.
- 3EVT Prototype & Bench Test: Receive working samples for system smoke test & motherboard validation, followed by mass production.
For urgent PC system integration, gaming rig bids, or high-volume PSU orders, contact our power supply engineering team via larry@encon.ltd for immediate assistance.
Downloads
Formal product documents are not yet available.
Ask ENCON for the latest approved datasheet or certification document.
