PS3 Compact Form Factor Series
PS3-200 / PS3-230 (200W–230W)Specialized 200W–230W compact form factor power supply engineered for slim desktop towers, retro gaming consoles, and specialized space-constrained industrial enclosures.
Product Specifications
Full breakdown (10 specs) ↓Platform overview
Designed around the brief.
Built to rigorous industrial standards with verified thermal dynamics, precision topology control, and high-efficiency power delivery engineered for heavy compute demands.
≥90%
80 PLUS Gold certified
≤50 µs
Fast recovery response
9-Fold
Hardware safety suite
>100k h
MTBF industrial rating
Custom wattage bins (550W–1050W), bespoke cable harness lengths, custom fan curves, and private label chassis grilles available for enterprise orders.
Inquire for custom platform specsSpecialized PS3 chassis footprint designed for shallow cases and proprietary OEM housings
Configuration and availability require confirmation for the final product program.
High-density circuit layout maximizing internal airflow and heat dissipation in compact space
Configuration and availability require confirmation for the final product program.
Dedicated 80mm cooling fan engineered for quiet acoustic output and steady ventilation
Configuration and availability require confirmation for the final product program.
Comprehensive hardware protections guarding against over-voltage, under-voltage, and short circuits
Configuration and availability require confirmation for the final product program.
Tailored cable harness lengths preventing excess line clutter in tight internal compartments
Configuration and availability require confirmation for the final product program.
Ideal for slim desktop workstations, industrial controllers, and specialized embedded machines
Configuration and availability require confirmation for the final product program.
Architecture & Hardware Showcase
Precision engineering, inside and out.
Direct view into component selection, structural PCB layout, and thermal topology.

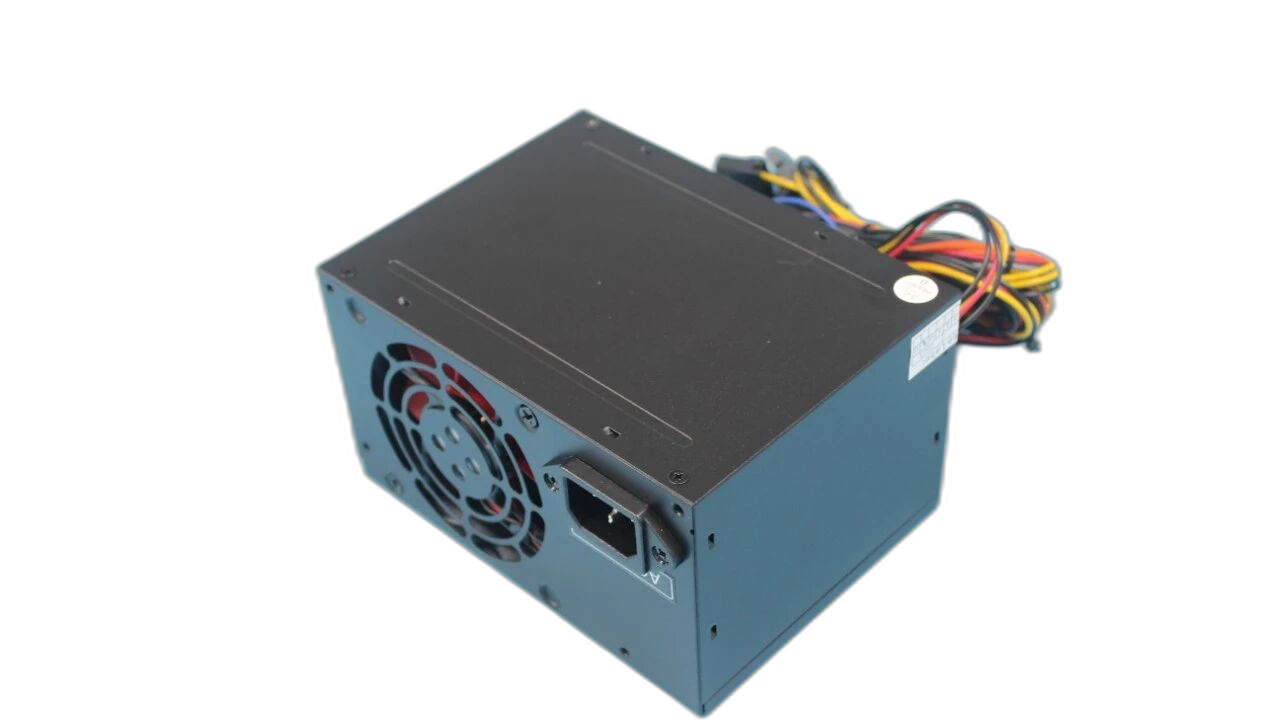

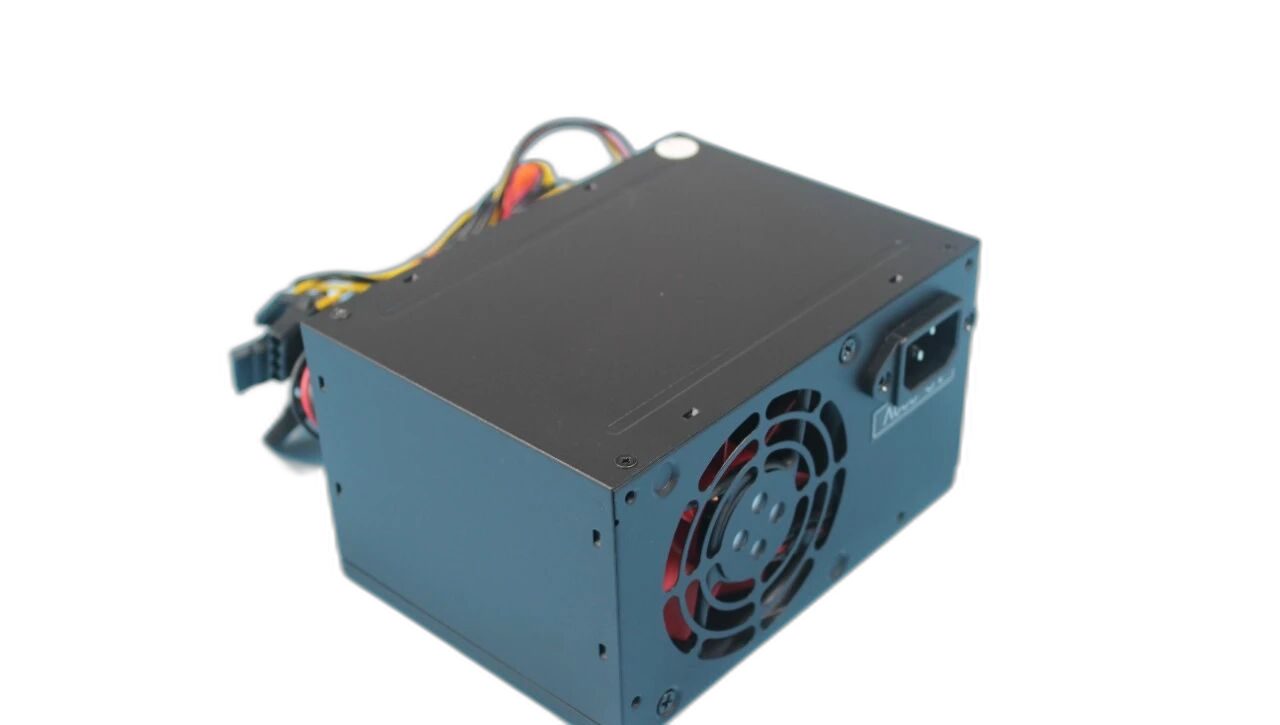

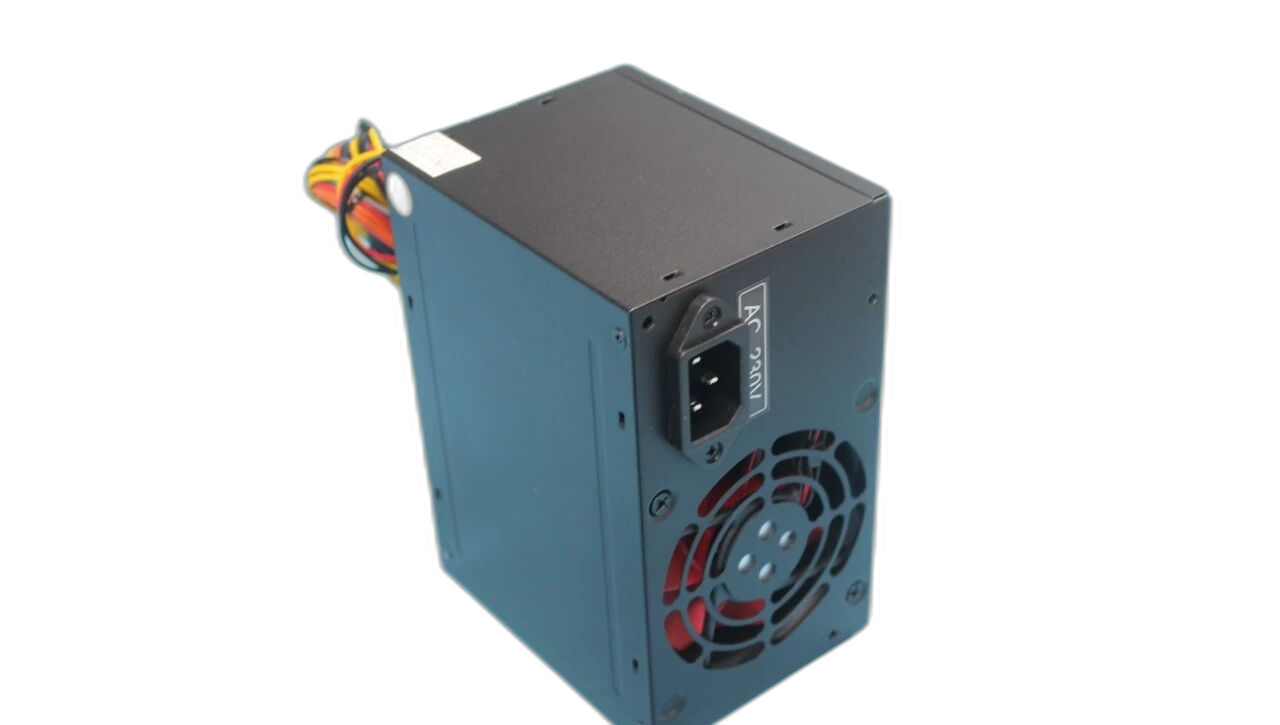

Chassis & Enclosure
Durable matte black / industrial enclosure designed for optimal ventilation and component protection.
Internal Architecture & Layout 1
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Internal Architecture & Layout 2
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Internal Architecture & Layout 3
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Structured data
Specifications
The PS3 series provides a dedicated form-factor power platform engineered to fit shallow compact chassis and specialized desktop cases. Built with a high-density internal component layout, it delivers clean, stable DC power with optimized internal airflow.
PS3 Compact Form Factor Series Engineering Datasheet
PDF · Mechanical dimensions & pinouts
Manufacturing & Test Standards
- Chroma 8000 automated test validation
- 100% Hi-Pot & thermal burn-in tested
- Intel ATX 3.1 & PCIe 5.1 native certification
- Taiwan / Japanese 105°C primary capacitor tier
Need custom voltage tolerances, custom cable harnesses or compliance records? Contact our power engineering team →
- Rated output
- 200 W – 230 W
- Efficiency tier
- Up to 78%–80% typical efficiency
- Topology
- Compact Half-Bridge Small Form Factor
- AC input range
- 164 – 264 V / 230V EU (Wide Range)
- Dynamic response
- ≤50 µs transient recovery time
- Cooling fan
- 80 mm high-efficiency silent fan
- Modularity
- Direct-wire compact harness
- Protection suite
- OVP, UVP, OPP, SCP, ESD, Surge
- MTBF
- >80,000 hours
- Form factor
- PS3 / Compact Desktop Special Footprint
