M10 TFX Active PFC Slim PSU
M10 TFX (250W–350W)Slim-line 250W–350W TFX power supply featuring Active PFC, two-switch forward switching, and 90–264V universal input for slim business desktops, kiosk systems, and OEM small form factor PCs.
Product Specifications
Full breakdown (11 specs) ↓Platform overview
Designed around the brief.
Built to rigorous industrial standards with verified thermal dynamics, precision topology control, and high-efficiency power delivery engineered for heavy compute demands.
≥90%
80 PLUS Gold certified
≤50 µs
Fast recovery response
9-Fold
Hardware safety suite
>100k h
MTBF industrial rating
Custom wattage bins (550W–1050W), bespoke cable harness lengths, custom fan curves, and private label chassis grilles available for enterprise orders.
Inquire for custom platform specsConforms strictly to Intel TFX 12V mechanical and electrical standards for slim PC enclosures
Configuration and availability require confirmation for the final product program.
Active PFC with SendustCore magnetic inductor achieving power factor over 0.98
Configuration and availability require confirmation for the final product program.
Up to 85% conversion efficiency reducing internal heat build-up inside compact cases
Configuration and availability require confirmation for the final product program.
Universal 90–264V AC input capability providing stable operation in fluctuating voltage areas
Configuration and availability require confirmation for the final product program.
80mm temperature-controlled fan ensuring quiet acoustic operation during office workflows
Configuration and availability require confirmation for the final product program.
Full 9-fold hardware circuit protection suite including Brown-out, OVP, UVP, and surge
Configuration and availability require confirmation for the final product program.
Taiwan-sourced bulk capacitors delivering enhanced hold-up time and prolonged service life
Configuration and availability require confirmation for the final product program.
Equipped with PCIe 6+2Pin connector for low-profile discrete graphics or expansion accelerators
Configuration and availability require confirmation for the final product program.
Architecture & Hardware Showcase
Precision engineering, inside and out.
Direct view into component selection, structural PCB layout, and thermal topology.
Chassis & Enclosure
Durable matte black / industrial enclosure designed for optimal ventilation and component protection.

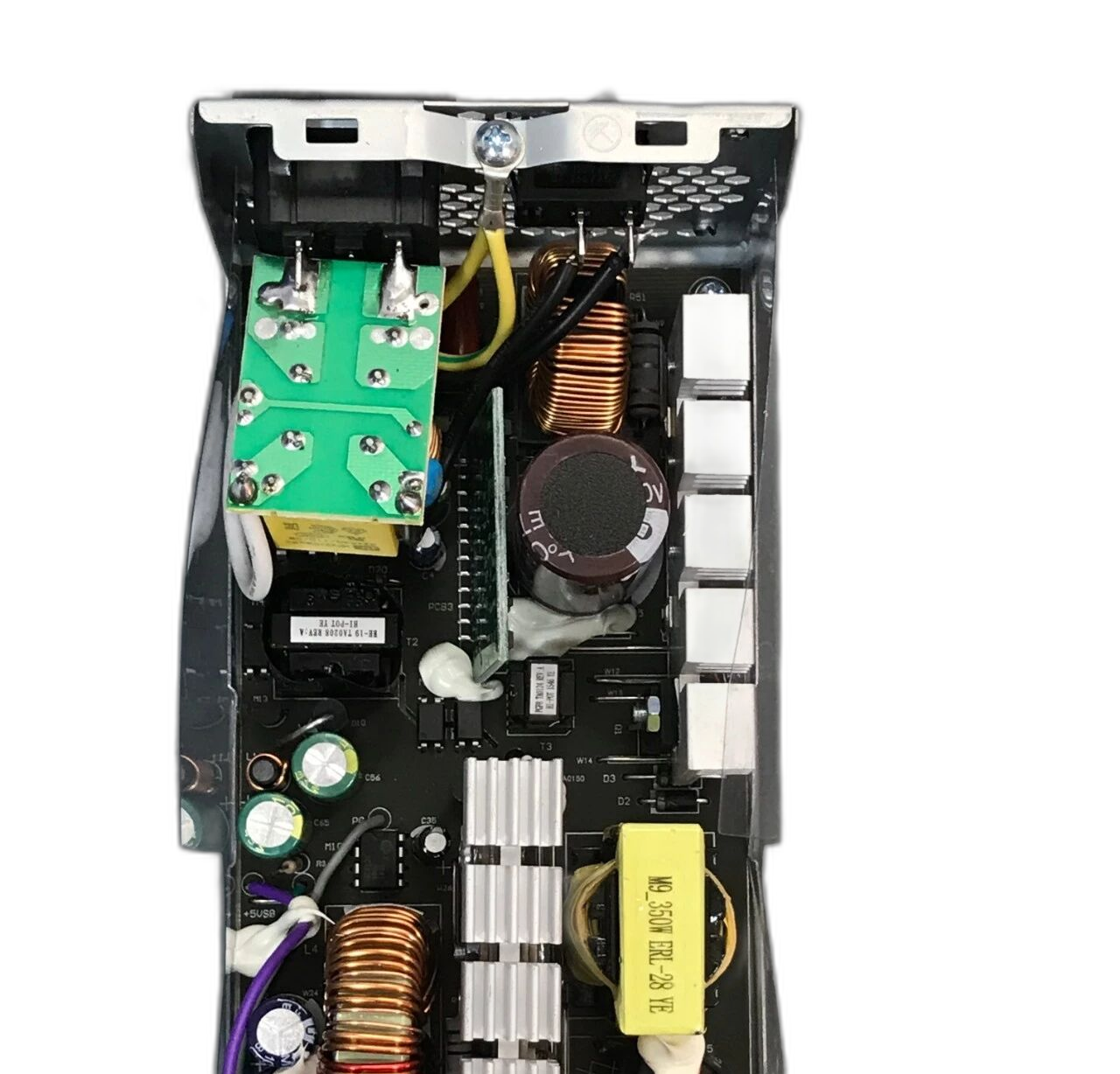

Internal Architecture & Layout 1
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Internal Architecture & Layout 2
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Structured data
Specifications
The M10 is designed specifically for slim desktop towers conforming to the Intel TFX 12V standard. Built with Active PFC, high-temperature SendustCore inductors, and a smart 80mm thermal fan, it achieves up to 85% efficiency while fitting effortlessly into space-saving commercial chassis.
M10 TFX Active PFC Slim PSU Engineering Datasheet
PDF · Mechanical dimensions & pinouts
Manufacturing & Test Standards
- Chroma 8000 automated test validation
- 100% Hi-Pot & thermal burn-in tested
- Intel ATX 3.1 & PCIe 5.1 native certification
- Taiwan / Japanese 105°C primary capacitor tier
Need custom voltage tolerances, custom cable harnesses or compliance records? Contact our power engineering team →
- Rated output
- 250 W – 350 W
- Efficiency tier
- Up to 85% typical (Bronze tier performance)
- Topology
- Active PFC + Two-Switch Forward (TFX 12V)
- AC input range
- 90 – 264 V (Full Range universal grid support)
- Dynamic response
- ≤50 µs transient recovery time
- Power factor
- >0.98 (SendustCore PFC choke)
- Cooling fan
- 80 mm smart low-noise fan (min 1500 RPM)
- Modularity
- Direct-wire slim-routed cables
- Protection suite
- Brown-out, OVP, UVP, OCP, OPP, SCP, ESD, Surge, EMC
- MTBF
- >100,000 hours (Taiwan components)
- Form factor
- Standard TFX 12V (175 x 85 x 65 mm)
