H6 / H7 Dual-Layer PCB Series
H6 / H7 (200W–350W)Economical 200W–350W desktop power platform utilizing half-bridge architecture with reinforced double-sided glass fiber PCB construction for high durability in entry commercial PCs.
Product Specifications
Full breakdown (11 specs) ↓Platform overview
Designed around the brief.
Built to rigorous industrial standards with verified thermal dynamics, precision topology control, and high-efficiency power delivery engineered for heavy compute demands.
≥90%
80 PLUS Gold certified
≤50 µs
Fast recovery response
9-Fold
Hardware safety suite
>100k h
MTBF industrial rating
Custom wattage bins (550W–1050W), bespoke cable harness lengths, custom fan curves, and private label chassis grilles available for enterprise orders.
Inquire for custom platform specsDual-layer glass fiber PCB layout resisting board warping and thermal cracking
Configuration and availability require confirmation for the final product program.
Optimized half-bridge circuit balancing low acquisition cost and reliable power delivery
Configuration and availability require confirmation for the final product program.
Smart thermal fan speed control maintaining quiet operation during office workloads
Configuration and availability require confirmation for the final product program.
Essential multi-layer protection suite guarding against over-voltage and short circuits
Configuration and availability require confirmation for the final product program.
Conforms to Intel ATX standard with broad CPU and motherboard compatibility
Configuration and availability require confirmation for the final product program.
Tested for continuous 24/7 commercial duty in office environments
Configuration and availability require confirmation for the final product program.
Architecture & Hardware Showcase
Precision engineering, inside and out.
Direct view into component selection, structural PCB layout, and thermal topology.
Chassis & Enclosure
Durable matte black / industrial enclosure designed for optimal ventilation and component protection.

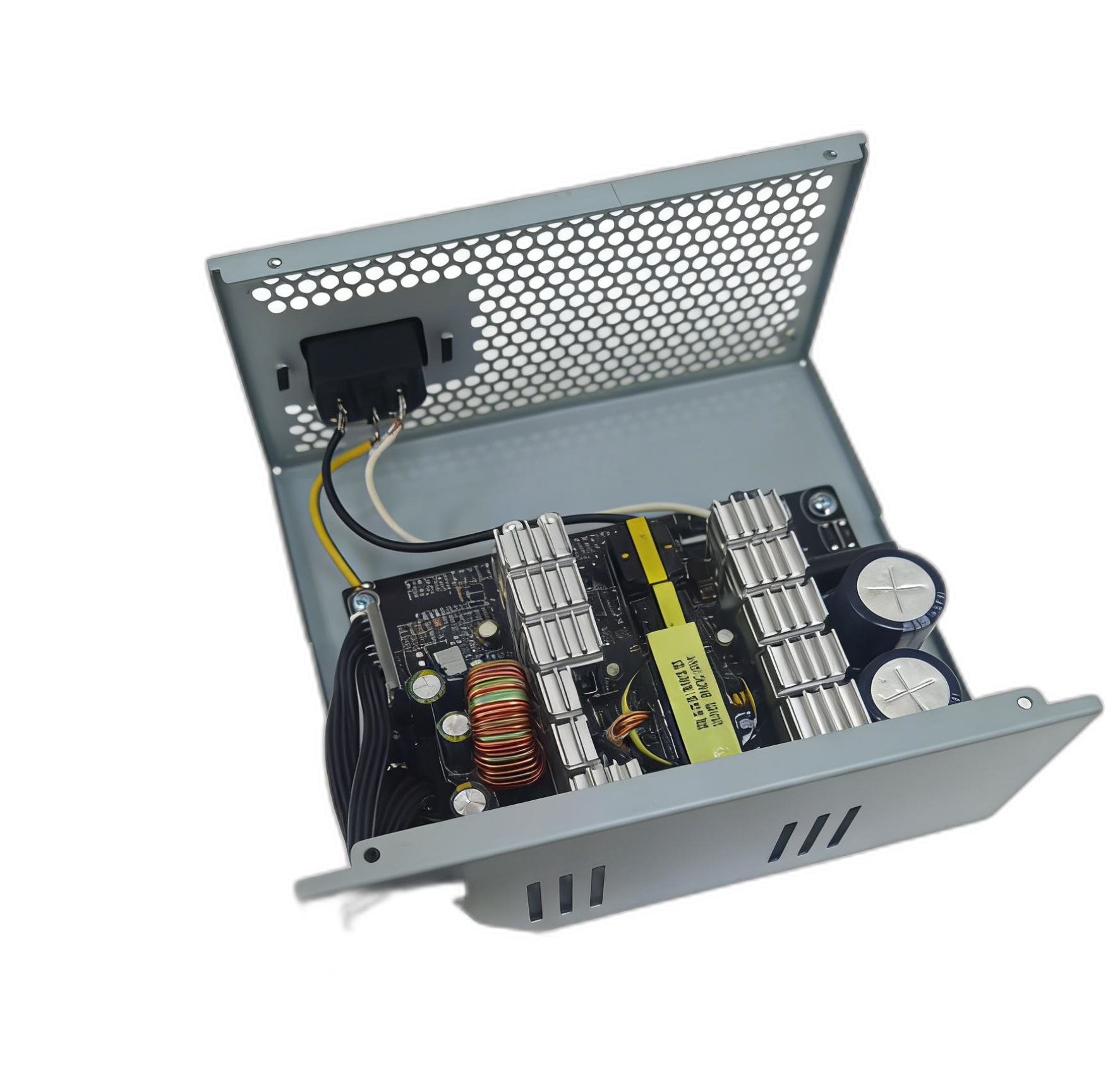

Internal Architecture & Layout 1
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.

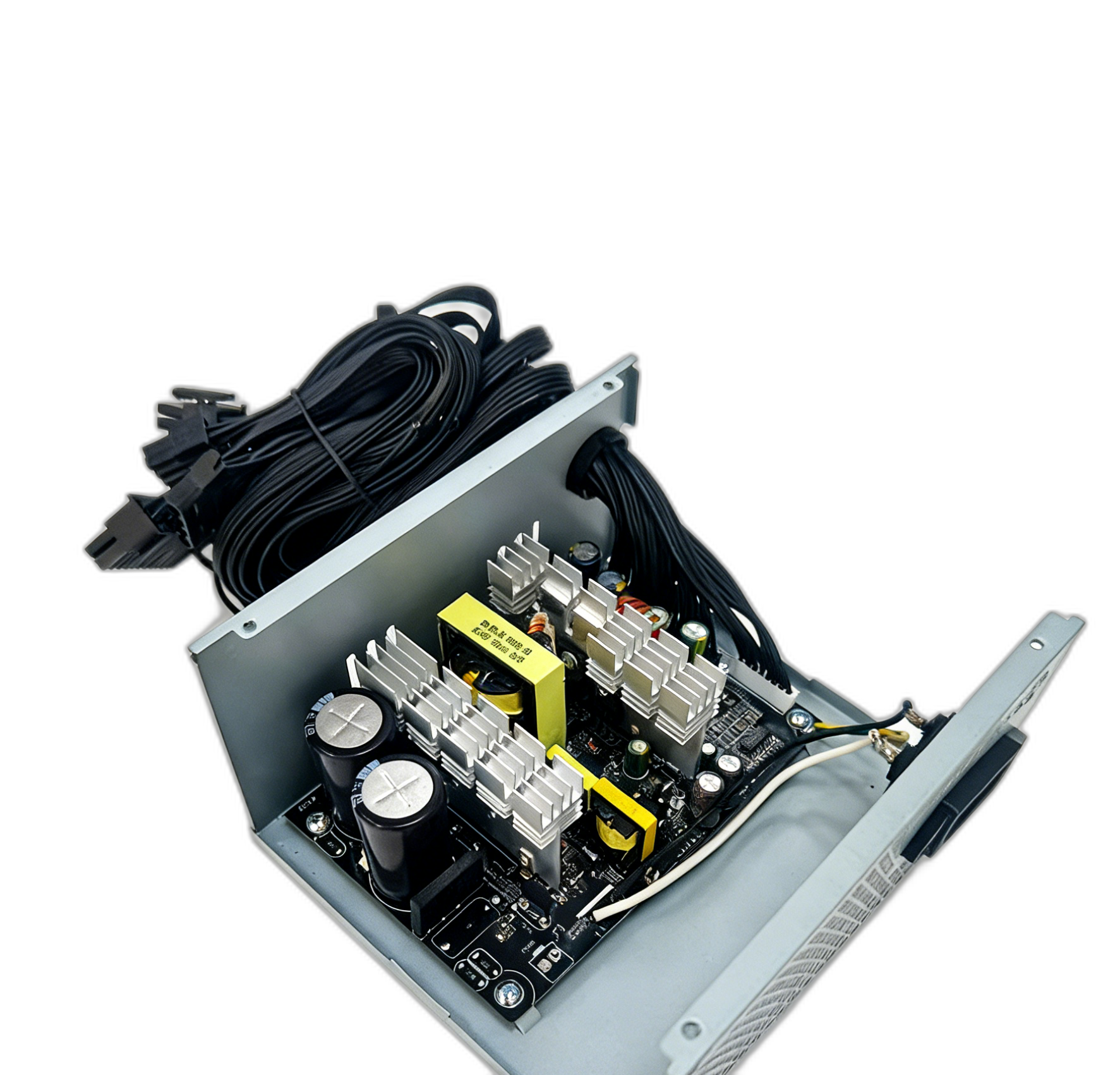

Internal Architecture & Layout 2
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Structured data
Specifications
The H6 and H7 series are designed for cost-sensitive office workstations, point-of-sale terminals, and light commercial desktops. Incorporating a dual-layer glass fiber PCB, these units offer superior solder reliability and component vibration resistance compared to standard single-layer boards.
H6 / H7 Dual-Layer PCB Series Engineering Datasheet
PDF · Mechanical dimensions & pinouts
Manufacturing & Test Standards
- Chroma 8000 automated test validation
- 100% Hi-Pot & thermal burn-in tested
- Intel ATX 3.1 & PCIe 5.1 native certification
- Taiwan / Japanese 105°C primary capacitor tier
Need custom voltage tolerances, custom cable harnesses or compliance records? Contact our power engineering team →
- Rated output
- 200 W – 350 W
- Efficiency tier
- Up to 78%–80% typical load efficiency
- Topology
- Half-Bridge + Double-Sided PCB
- Standard
- Intel ATX 12V standard
- AC input range
- 164 – 264 V / 230V EU
- Dynamic response
- ≤50 µs transient recovery time
- Ripple & noise
- Low ripple design conforming to ATX standard
- Cooling fan
- 120 mm / 80 mm thermal controlled fan
- Modularity
- Direct-wire standard ATX loom
- Protection suite
- OVP, UVP, OPP, SCP, ESD, Lightning Surge
- MTBF
- >80,000 hours
PC Power Supply Engineering
PC Power Supply OEM/ODM & Technical Support
Direct technical & commercial access for desktop, gaming rig, and workstation power supplies. Discuss wattage sizing (550W–1050W), ATX 3.1 & 12V-2x6 GPU delivery, modular cabling, and PC chassis compatibility with our engineering team.
Direct FAE evaluation for GPU transient spikes (200% excursion), 12V-2x6 cable clearance, and motherboard 24-pin compatibility within 24 hours.
Golden engineering units shipped in 3–5 days to validate PC chassis mounting, FDB fan acoustic profiles, and GPU power delivery under real loads.
Custom embossed/braided modular cables, customized casing finishes (Black/White), branded fan grilles, and bilateral NDA protection.
Complete ATE automated test reports (ripple <30mV, voltage regulation <±1.5%), cross-load efficiency curves, thermal imaging, and 3D CAD STEP files.
PC Power Supply Project Roadmap
- 1Platform & Wattage Selection: Choose standard wattage (550W–1050W), modular format (Full/Semi/Direct), or custom embossed cable lengths.
- 2Chassis & GPU Compatibility Review (<24h): Our FAEs verify 140mm chassis depth fitment, 12V-2x6 thermal safety, and thermal airflow curves.
- 3EVT Prototype & Bench Test: Receive working samples for system smoke test & motherboard validation, followed by mass production.
For urgent PC system integration, gaming rig bids, or high-volume PSU orders, contact our power supply engineering team via larry@encon.ltd for immediate assistance.
Downloads
Formal product documents are not yet available.
Ask ENCON for the latest approved datasheet or certification document.
