GigaMax Bronze Series
GigaMax 700W (550W–750W)Reliable 700W ATX power supply certified with 80 PLUS Bronze efficiency, 99% Active PFC, heavy-duty 105°C capacitors, and a quiet 120mm Fluid Dynamic Bearing (FDB) fan.
Product Specifications
Full breakdown (12 specs) ↓Platform overview
Designed around the brief.
Built to rigorous industrial standards with verified thermal dynamics, precision topology control, and high-efficiency power delivery engineered for heavy compute demands.
≥90%
80 PLUS Gold certified
≤50 µs
Fast recovery response
9-Fold
Hardware safety suite
>100k h
MTBF industrial rating
Custom wattage bins (550W–1050W), bespoke cable harness lengths, custom fan curves, and private label chassis grilles available for enterprise orders.
Inquire for custom platform specsOfficial 80 PLUS Bronze certified efficiency minimizing energy waste and standby power consumption
Configuration and availability require confirmation for the final product program.
Ultra-compact 140mm depth enclosure providing maximum clearance for cable management in mid-tower cases
Configuration and availability require confirmation for the final product program.
120mm Fluid Dynamic Bearing (FDB) fan offering low-friction, silent operation and long operational life
Configuration and availability require confirmation for the final product program.
Heavy-duty 105°C rated capacitors providing extended durability under high ambient gaming temperatures
Configuration and availability require confirmation for the final product program.
Active PFC circuit with up to 99% power factor correction for clean, distortion-free AC input
Configuration and availability require confirmation for the final product program.
High-amperage single +12V rail delivering dedicated power to modern multi-core processors and graphics cards
Configuration and availability require confirmation for the final product program.
Comprehensive 6-fold industrial protection circuitry safeguarding against power surges and thermal risks
Configuration and availability require confirmation for the final product program.

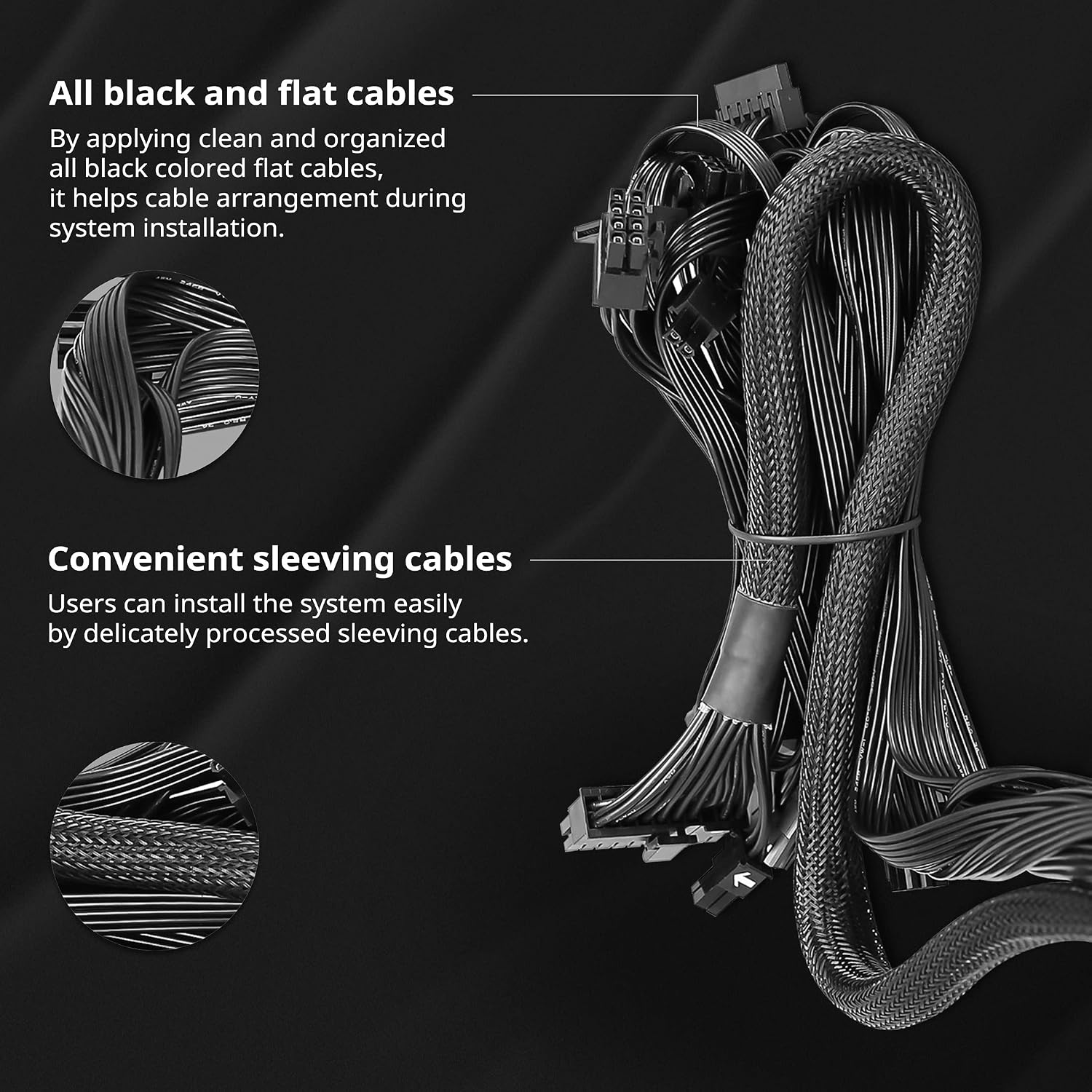

Sleeved black cables and flat peripheral leads for neat, organized system builds
Configuration and availability require confirmation for the final product program.
Architecture & Hardware Showcase
Precision engineering, inside and out.
Direct view into component selection, structural PCB layout, and thermal topology.
Front Profile & Fan Grille
Matte black steel chassis with stamped Zalman fan grille and 120mm FDB fan.
Chassis & Cable Exit
Compact 140mm housing featuring reinforced cable exit grommet.
Honeycomb Exhaust & AC Inlet
High-flow honeycomb ventilation mesh with power rocker switch.

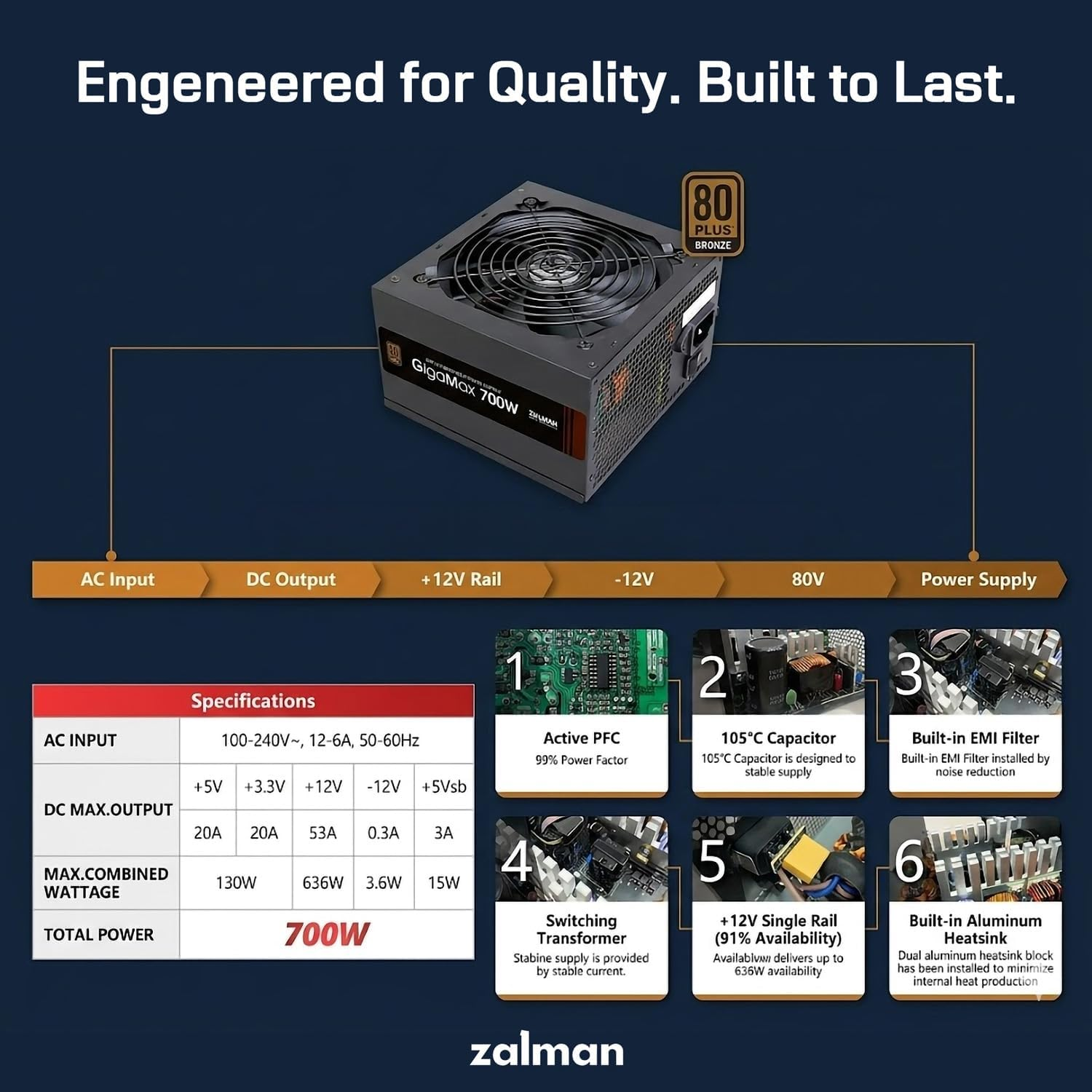

DC Output Specification Table
Detailed DC load table highlighting robust single +12V rail output.

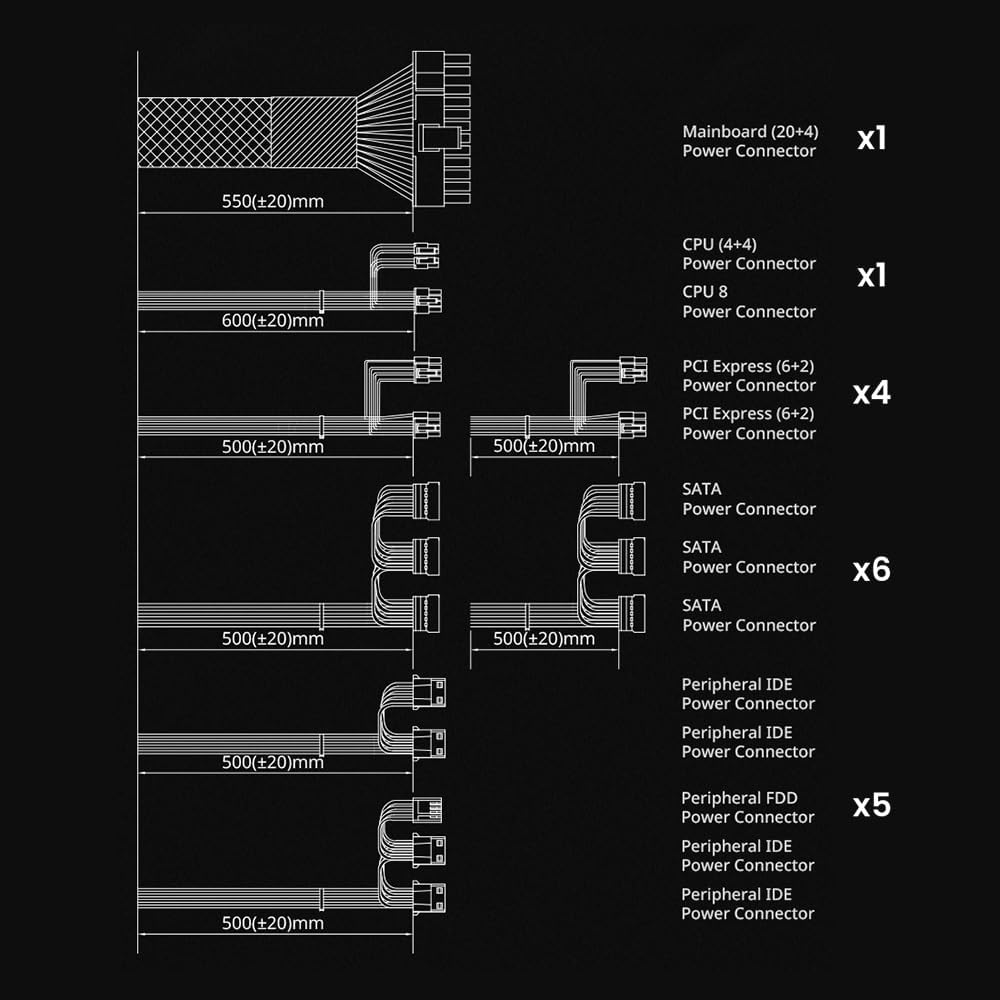

Cabling & Connector Layout
Complete black cable harness with PCIe 6+2Pin and SATA connectors.
Retail Box
Zalman GigaMax retail packaging detailing certified Bronze efficiency.
Structured data
Specifications
The GigaMax Bronze series delivers dependable, cost-effective power delivery for mainstream gaming PCs, workstation systems, and system integrators. Equipped with 99% Active PFC, +12V single-rail output, and 105°C heavy-duty capacitors, it ensures stable current across varying load conditions. A 120mm Fluid Dynamic Bearing (FDB) fan delivers quiet thermal dissipation with minimal vibration, while the compact 140mm depth enclosure fits easily into all standard ATX chassis.
GigaMax Bronze Series Engineering Datasheet
PDF · Mechanical dimensions & pinouts
Manufacturing & Test Standards
- Chroma 8000 automated test validation
- 100% Hi-Pot & thermal burn-in tested
- Intel ATX 3.1 & PCIe 5.1 native certification
- Taiwan / Japanese 105°C primary capacitor tier
Need custom voltage tolerances, custom cable harnesses or compliance records? Contact our power engineering team →
- Rated output
- 700 W (550W / 650W / 700W / 750W options)
- Efficiency tier
- 80 PLUS Bronze (≥85% - 88% efficiency)
- Topology
- Active PFC + Dual Forward Converter + DC-DC
- AC input range
- 100 – 240 V AC (47 – 63 Hz global range)
- Power factor
- Active PFC up to 99% correction
- Cooling fan
- 120 mm Fluid Dynamic Bearing (FDB) fan

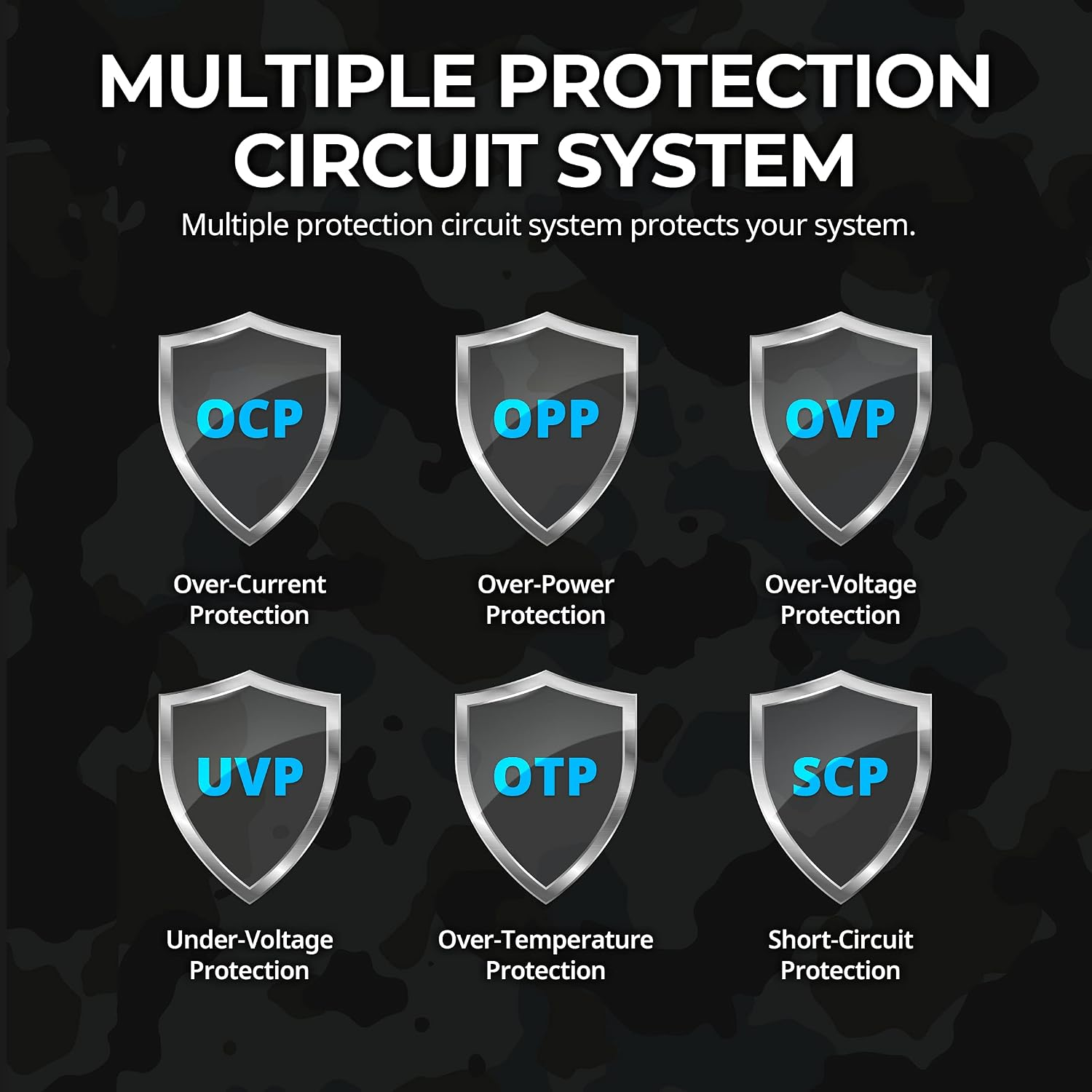

- Protection suite
- OPP, OVP, UVP, SCP, OCP, OTP (6-fold protection)
- Form factor
- Standard ATX12V v2.31
- Capacitors
- 105°C heavy-duty high-temperature capacitors
- Dimensions
- 140 mm x 150 mm x 86 mm (ultra-compact depth)
- +12V output
- Single +12V rail design for maximum GPU/CPU power
- Certifications
- 80 PLUS Bronze, CE, CB, RoHS, EAC, FCC
PC Power Supply Engineering
PC Power Supply OEM/ODM & Technical Support
Direct technical & commercial access for desktop, gaming rig, and workstation power supplies. Discuss wattage sizing (550W–1050W), ATX 3.1 & 12V-2x6 GPU delivery, modular cabling, and PC chassis compatibility with our engineering team.
Direct FAE evaluation for GPU transient spikes (200% excursion), 12V-2x6 cable clearance, and motherboard 24-pin compatibility within 24 hours.
Golden engineering units shipped in 3–5 days to validate PC chassis mounting, FDB fan acoustic profiles, and GPU power delivery under real loads.
Custom embossed/braided modular cables, customized casing finishes (Black/White), branded fan grilles, and bilateral NDA protection.
Complete ATE automated test reports (ripple <30mV, voltage regulation <±1.5%), cross-load efficiency curves, thermal imaging, and 3D CAD STEP files.
PC Power Supply Project Roadmap
- 1Platform & Wattage Selection: Choose standard wattage (550W–1050W), modular format (Full/Semi/Direct), or custom embossed cable lengths.
- 2Chassis & GPU Compatibility Review (<24h): Our FAEs verify 140mm chassis depth fitment, 12V-2x6 thermal safety, and thermal airflow curves.
- 3EVT Prototype & Bench Test: Receive working samples for system smoke test & motherboard validation, followed by mass production.
For urgent PC system integration, gaming rig bids, or high-volume PSU orders, contact our power supply engineering team via larry@encon.ltd for immediate assistance.
Downloads
Formal product documents are not yet available.
Ask ENCON for the latest approved datasheet or certification document.
