F30 Full Modular APFC + DC-DC
F30 (350W–850W)Full modular 350W–850W power supply combining Active PFC, DC-DC voltage regulation, and double-sided PCB engineering with customizable detachable cables for clean builder-friendly installations.
Product Specifications
Full breakdown (12 specs) ↓Platform overview
Designed around the brief.
Built to rigorous industrial standards with verified thermal dynamics, precision topology control, and high-efficiency power delivery engineered for heavy compute demands.
≥90%
80 PLUS Gold certified
≤50 µs
Fast recovery response
9-Fold
Hardware safety suite
>100k h
MTBF industrial rating
Custom wattage bins (550W–1050W), bespoke cable harness lengths, custom fan curves, and private label chassis grilles available for enterprise orders.
Inquire for custom platform specsFull modular backplane design allowing builders to connect only required cables for cleaner interiors
Configuration and availability require confirmation for the final product program.
Active PFC combined with independent DC-DC converters for precise voltage output tolerances
Configuration and availability require confirmation for the final product program.
Heavy-duty double-sided PCB layout delivering enhanced structural integrity and thermal dissipation
Configuration and availability require confirmation for the final product program.
Universal 90–264V AC input range supporting voltage stability across global commercial grids
Configuration and availability require confirmation for the final product program.
Intelligent thermal sensor adjusting fan speed dynamically for optimal noise-to-cooling ratio
Configuration and availability require confirmation for the final product program.
Reduced Y-capacitor design suppressing leakage current and preventing subtle electric sensation on chassis
Configuration and availability require confirmation for the final product program.
Complete 9-fold circuit protection: OVP, UVP, OCP, OPP, SCP, Brown-out, ESD, Surge, and EMC
Configuration and availability require confirmation for the final product program.
PCIe 6+2Pin connectors compatible with wide selection of modern discrete graphics cards
Configuration and availability require confirmation for the final product program.
Architecture & Hardware Showcase
Precision engineering, inside and out.
Direct view into component selection, structural PCB layout, and thermal topology.

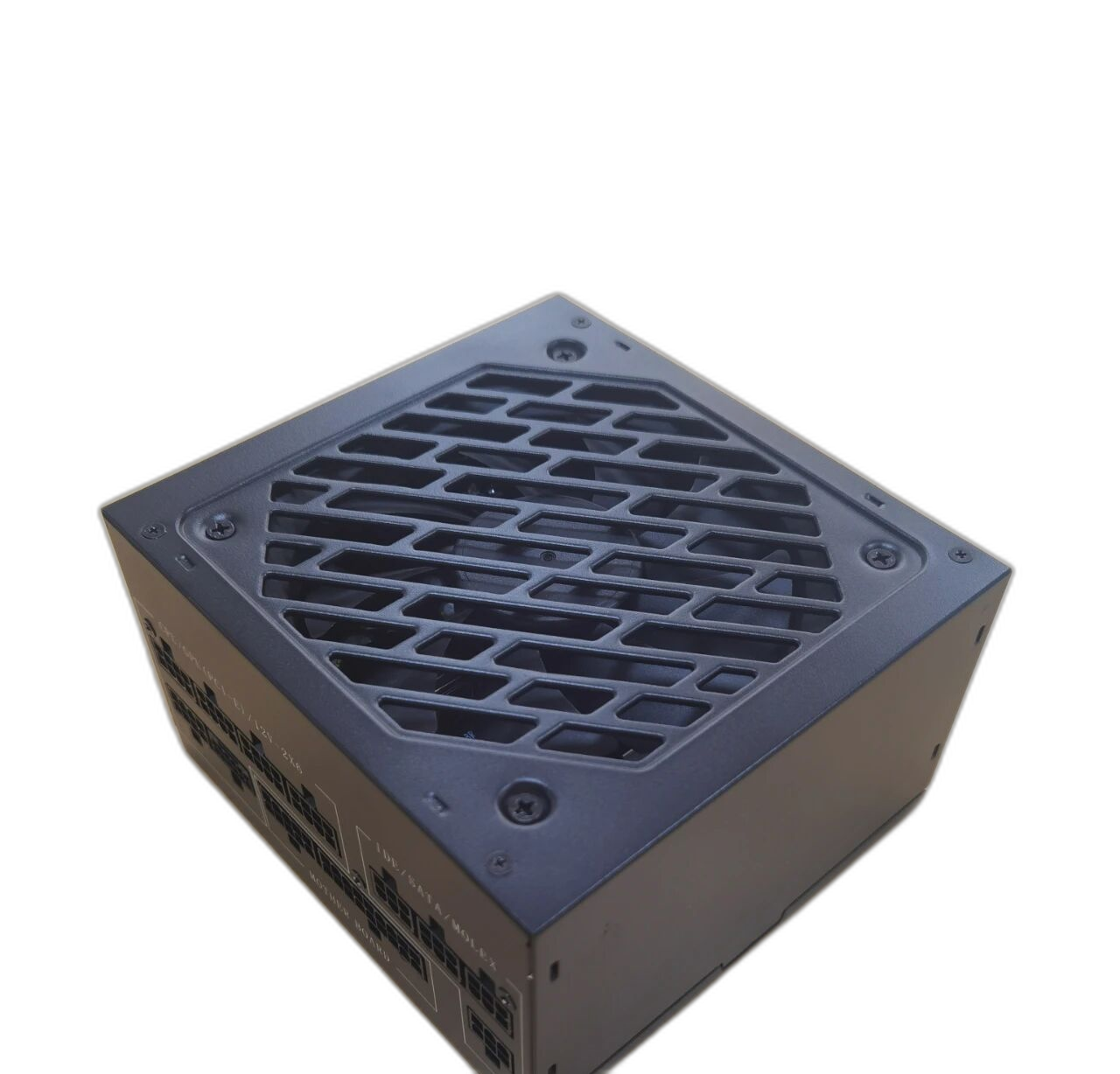

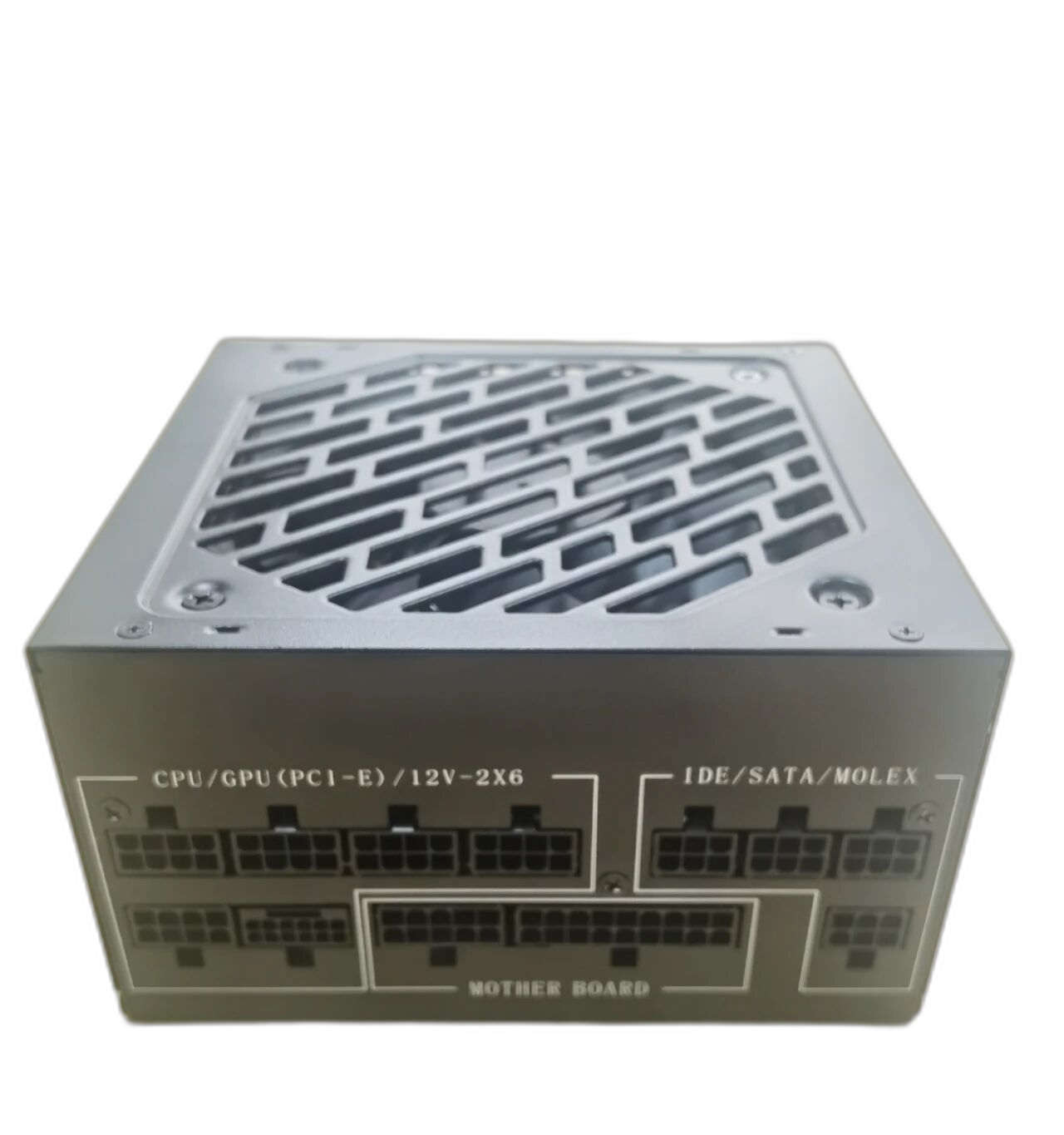

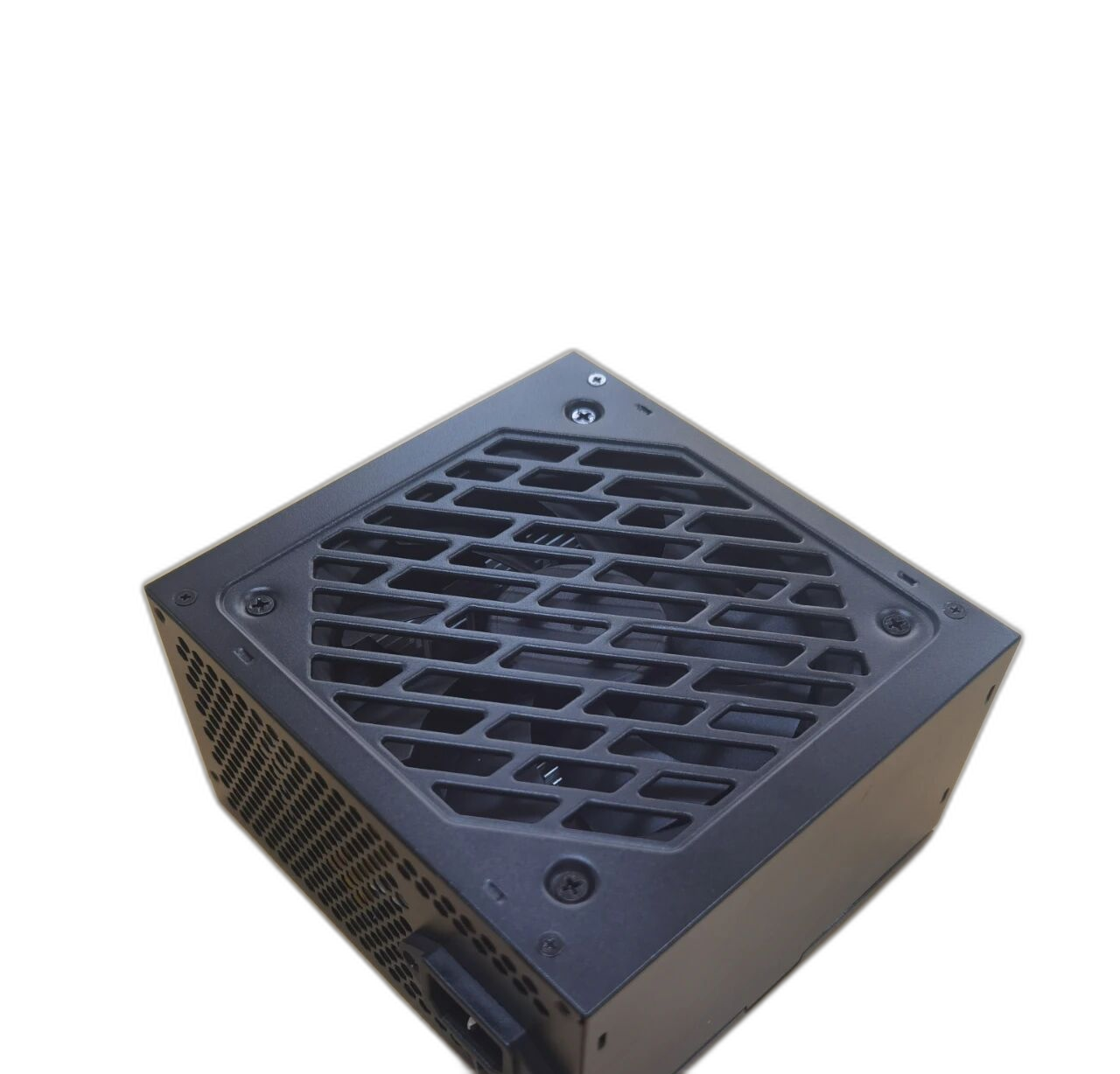

Chassis & Enclosure
Durable matte black / industrial enclosure designed for optimal ventilation and component protection.
Internal Architecture & Layout 1
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Internal Architecture & Layout 2
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Internal Architecture & Layout 3
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Structured data
Specifications
The F30 brings full modular cable management to the mainstream 350W–850W segment. Built with Active PFC, synchronous DC-DC modules, and dual-layer PCB architecture, it enables builders to install only necessary cables, significantly improving internal chassis airflow and build aesthetics.
F30 Full Modular APFC + DC-DC Engineering Datasheet
PDF · Mechanical dimensions & pinouts
Manufacturing & Test Standards
- Chroma 8000 automated test validation
- 100% Hi-Pot & thermal burn-in tested
- Intel ATX 3.1 & PCIe 5.1 native certification
- Taiwan / Japanese 105°C primary capacitor tier
Need custom voltage tolerances, custom cable harnesses or compliance records? Contact our power engineering team →
- Rated output
- 350 W – 850 W
- Efficiency tier
- Up to 85% typical (Bronze tier performance)
- Topology
- Active PFC + Forward + DC-DC Modules
- Standard
- Intel ATX 12V 2.52
- AC input range
- 90 – 264 V (Full Range universal input)
- Dynamic response
- ≤50 µs transient recovery time
- Power factor
- >0.98 (SendustCore PFC choke)
- Ripple & noise
- +5V/+3.3V <50mV, +12V <120mV
- Cooling fan
- 120 mm smart thermal fan (min 1200 RPM)
- Modularity
- Full Modular with detachable flat cables
- Protection suite
- Brown-out, OVP, UVP, OCP, OPP, SCP, ESD, Surge, EMC
- MTBF
- >100,000 hours
PC Power Supply Engineering
PC Power Supply OEM/ODM & Technical Support
Direct technical & commercial access for desktop, gaming rig, and workstation power supplies. Discuss wattage sizing (550W–1050W), ATX 3.1 & 12V-2x6 GPU delivery, modular cabling, and PC chassis compatibility with our engineering team.
Direct FAE evaluation for GPU transient spikes (200% excursion), 12V-2x6 cable clearance, and motherboard 24-pin compatibility within 24 hours.
Golden engineering units shipped in 3–5 days to validate PC chassis mounting, FDB fan acoustic profiles, and GPU power delivery under real loads.
Custom embossed/braided modular cables, customized casing finishes (Black/White), branded fan grilles, and bilateral NDA protection.
Complete ATE automated test reports (ripple <30mV, voltage regulation <±1.5%), cross-load efficiency curves, thermal imaging, and 3D CAD STEP files.
PC Power Supply Project Roadmap
- 1Platform & Wattage Selection: Choose standard wattage (550W–1050W), modular format (Full/Semi/Direct), or custom embossed cable lengths.
- 2Chassis & GPU Compatibility Review (<24h): Our FAEs verify 140mm chassis depth fitment, 12V-2x6 thermal safety, and thermal airflow curves.
- 3EVT Prototype & Bench Test: Receive working samples for system smoke test & motherboard validation, followed by mass production.
For urgent PC system integration, gaming rig bids, or high-volume PSU orders, contact our power supply engineering team via larry@encon.ltd for immediate assistance.
Downloads
Formal product documents are not yet available.
Ask ENCON for the latest approved datasheet or certification document.
