F23 APFC White / Bronze Series
F23 (400W–800W)High-value 400W to 800W desktop power platform engineered with Active PFC and high-efficiency switching to achieve 80 PLUS White and Bronze certification tiers for mainstream PC builds.
Product Specifications
Full breakdown (12 specs) ↓Platform overview
Designed around the brief.
Built to rigorous industrial standards with verified thermal dynamics, precision topology control, and high-efficiency power delivery engineered for heavy compute demands.
≥90%
80 PLUS Gold certified
≤50 µs
Fast recovery response
9-Fold
Hardware safety suite
>100k h
MTBF industrial rating
Custom wattage bins (550W–1050W), bespoke cable harness lengths, custom fan curves, and private label chassis grilles available for enterprise orders.
Inquire for custom platform specsVerified 80 PLUS White and Bronze efficiency tiers reducing electricity costs and excess heat
Configuration and availability require confirmation for the final product program.
Active PFC circuit achieving power factor over 0.98 for optimal grid utilization
Configuration and availability require confirmation for the final product program.
Wide input voltage compatibility ensuring dependable continuous operation
Configuration and availability require confirmation for the final product program.
Smart thermal fan curve keeping ambient noise low during everyday office and multimedia tasks
Configuration and availability require confirmation for the final product program.
Comprehensive safety protections against over-voltage, short-circuit, and power overload
Configuration and availability require confirmation for the final product program.
Extended cabling lengths for effortless rear-side routing in standard mid-tower enclosures
Configuration and availability require confirmation for the final product program.
Strict component screening with high-grade electrolytic capacitors for prolonged operational lifespan
Configuration and availability require confirmation for the final product program.
Supports modern multi-core processors and mainstream consumer GPUs
Configuration and availability require confirmation for the final product program.
Architecture & Hardware Showcase
Precision engineering, inside and out.
Direct view into component selection, structural PCB layout, and thermal topology.

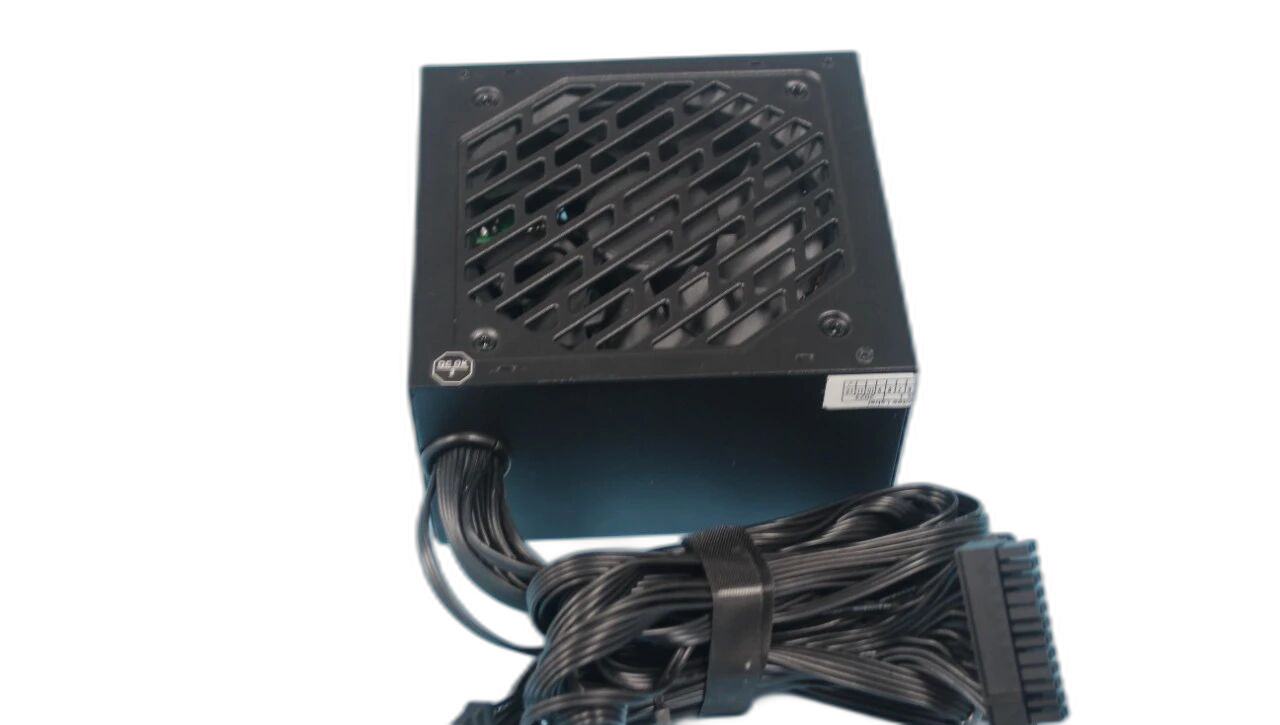

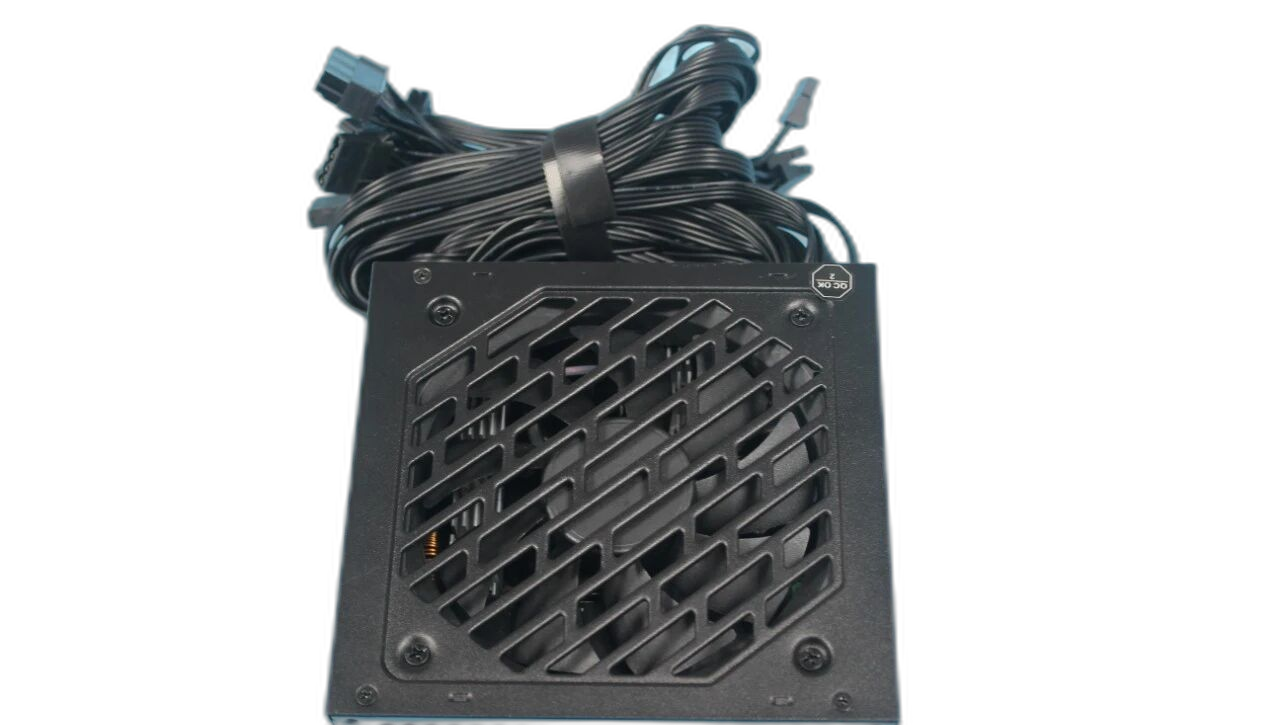

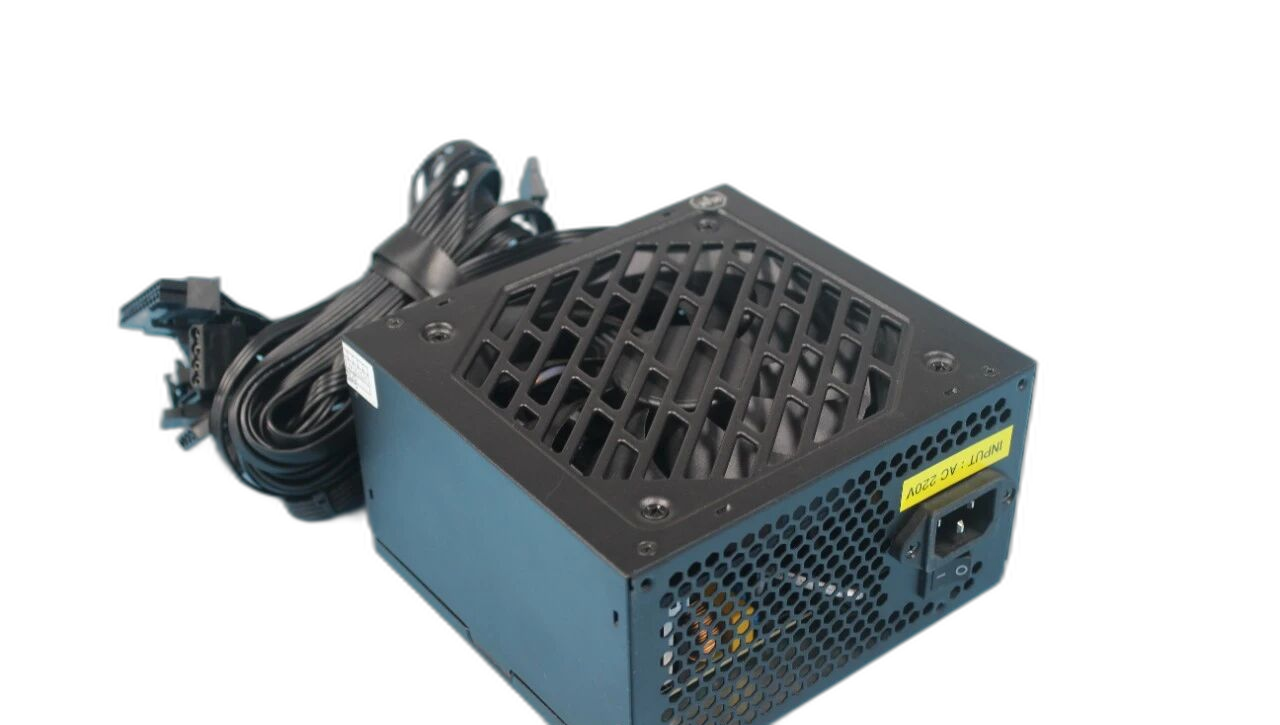

Chassis & Enclosure
Durable matte black / industrial enclosure designed for optimal ventilation and component protection.
Internal Architecture & Layout 1
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Internal Architecture & Layout 2
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Internal Architecture & Layout 3
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Structured data
Specifications
Designed for OEM system builders, enterprise desktop fleets, and cost-conscious gaming systems, the F23 series delivers verified 80 PLUS White and Bronze efficiency across the 400W–800W range. Featuring Active PFC, quiet thermal fan profiles, and durable internal components, it offers uncompromised stability and low standby draw.
F23 APFC White / Bronze Series Engineering Datasheet
PDF · Mechanical dimensions & pinouts
Manufacturing & Test Standards
- Chroma 8000 automated test validation
- 100% Hi-Pot & thermal burn-in tested
- Intel ATX 3.1 & PCIe 5.1 native certification
- Taiwan / Japanese 105°C primary capacitor tier
Need custom voltage tolerances, custom cable harnesses or compliance records? Contact our power engineering team →
- Rated output
- 400 W – 800 W
- Efficiency tier
- 80 PLUS White & Bronze (80%–85% typical)
- Topology
- Active PFC + Forward Switching
- Standard
- Intel ATX 12V 2.52
- AC input range
- 100 – 240 V / 230V EU Wide Range
- Dynamic response
- ≤50 µs transient recovery time
- Power factor
- >0.98 (Active PFC)
- Ripple & noise
- +5V/+3.3V <50mV, +12V <120mV
- Cooling fan
- 120 mm smart temperature-controlled fan
- Modularity
- Direct-wire with extended black ribbon cables
- Protection suite
- OVP, UVP, OCP, OPP, SCP, ESD, Surge
- MTBF
- >100,000 hours
PC Power Supply Engineering
PC Power Supply OEM/ODM & Technical Support
Direct technical & commercial access for desktop, gaming rig, and workstation power supplies. Discuss wattage sizing (550W–1050W), ATX 3.1 & 12V-2x6 GPU delivery, modular cabling, and PC chassis compatibility with our engineering team.
Direct FAE evaluation for GPU transient spikes (200% excursion), 12V-2x6 cable clearance, and motherboard 24-pin compatibility within 24 hours.
Golden engineering units shipped in 3–5 days to validate PC chassis mounting, FDB fan acoustic profiles, and GPU power delivery under real loads.
Custom embossed/braided modular cables, customized casing finishes (Black/White), branded fan grilles, and bilateral NDA protection.
Complete ATE automated test reports (ripple <30mV, voltage regulation <±1.5%), cross-load efficiency curves, thermal imaging, and 3D CAD STEP files.
PC Power Supply Project Roadmap
- 1Platform & Wattage Selection: Choose standard wattage (550W–1050W), modular format (Full/Semi/Direct), or custom embossed cable lengths.
- 2Chassis & GPU Compatibility Review (<24h): Our FAEs verify 140mm chassis depth fitment, 12V-2x6 thermal safety, and thermal airflow curves.
- 3EVT Prototype & Bench Test: Receive working samples for system smoke test & motherboard validation, followed by mass production.
For urgent PC system integration, gaming rig bids, or high-volume PSU orders, contact our power supply engineering team via larry@encon.ltd for immediate assistance.
Downloads
Formal product documents are not yet available.
Ask ENCON for the latest approved datasheet or certification document.
