F12 Gold LLC Synchronous DC-DC
F12 (500W–800W)500W–800W 80 PLUS Gold certified platform combining Active PFC, LLC resonance, synchronous rectification, and DC-DC conversion to achieve ≥90% efficiency and exceptional thermal control.
Product Specifications
Full breakdown (12 specs) ↓Platform overview
Designed around the brief.
Built to rigorous industrial standards with verified thermal dynamics, precision topology control, and high-efficiency power delivery engineered for heavy compute demands.
≥90%
80 PLUS Gold certified
≤50 µs
Fast recovery response
9-Fold
Hardware safety suite
>100k h
MTBF industrial rating
Custom wattage bins (550W–1050W), bespoke cable harness lengths, custom fan curves, and private label chassis grilles available for enterprise orders.
Inquire for custom platform specsAPFC + LLC resonant tank + synchronous rectification achieving verified 90% Gold efficiency
Configuration and availability require confirmation for the final product program.
Independent DC-DC step-down conversion for rock-solid +5V and +3.3V voltage rails
Configuration and availability require confirmation for the final product program.
SendustCore low-loss PFC inductor maintaining high thermal resilience and power factor >0.98
Configuration and availability require confirmation for the final product program.
Ultra-wide 90–264V AC input tolerance allowing stable startup in low-voltage industrial grids
Configuration and availability require confirmation for the final product program.
Low ripple voltage (<50mV on low rails, <120mV on 12V) extending PC hardware lifespan
Configuration and availability require confirmation for the final product program.
Intelligent acoustic fan curve with a low 1000 RPM noise floor
Configuration and availability require confirmation for the final product program.
Complete 9-fold protection suite guarding against lightning surge, ESD, and electrical faults
Configuration and availability require confirmation for the final product program.
Flat black ribbon cabling ensuring smooth rear cable dressing in modern chassis
Configuration and availability require confirmation for the final product program.
Architecture & Hardware Showcase
Precision engineering, inside and out.
Direct view into component selection, structural PCB layout, and thermal topology.

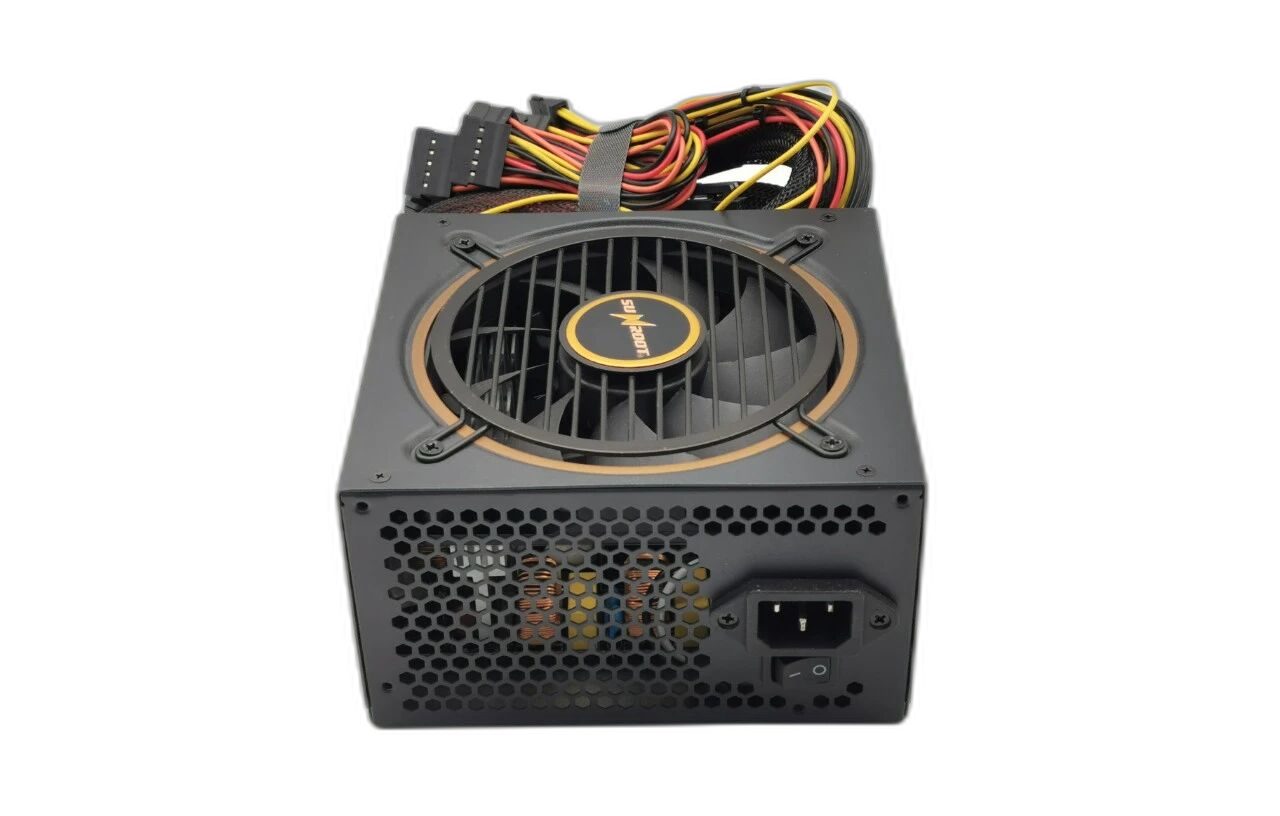

Chassis & Enclosure
Durable matte black / industrial enclosure designed for optimal ventilation and component protection.

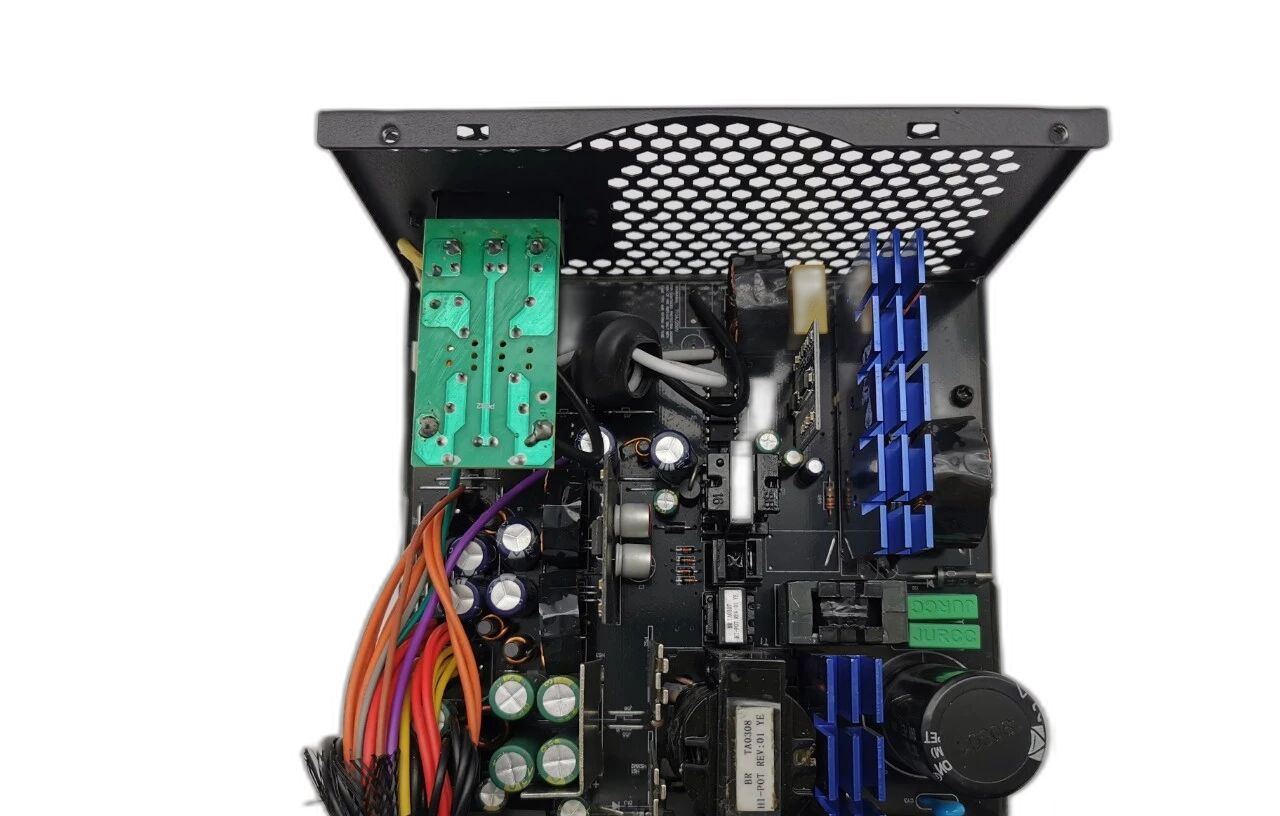

Internal Architecture & Layout 1
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Internal Architecture & Layout 2
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Structured data
Specifications
The F12 platform brings premium LLC resonant technology into the popular 500W–800W mid-range sweet spot. With synchronous rectification and DC-DC converter boards, it achieves 90% Gold-tier efficiency, tight voltage regulation, and whisper-quiet operation starting at 1000 RPM.
F12 Gold LLC Synchronous DC-DC Engineering Datasheet
PDF · Mechanical dimensions & pinouts
Manufacturing & Test Standards
- Chroma 8000 automated test validation
- 100% Hi-Pot & thermal burn-in tested
- Intel ATX 3.1 & PCIe 5.1 native certification
- Taiwan / Japanese 105°C primary capacitor tier
Need custom voltage tolerances, custom cable harnesses or compliance records? Contact our power engineering team →
- Rated output
- 500 W – 800 W
- Efficiency tier
- 80 PLUS Gold (≥90% typical load)
- Topology
- Active PFC + LLC + Synchronous Rectification + DC-DC
- Standard
- Intel ATX 12V 2.52 / PCIe 5.0 Ready
- AC input range
- 90 – 264 V (Full Range low-voltage start)
- Dynamic response
- ≤50 µs transient recovery time
- Power factor
- >0.98 (SendustCore PFC choke)
- Ripple & noise
- +5V/+3.3V <50mV, +12V <120mV
- Cooling fan
- 120 mm smart PWM fan (min 1000 RPM)
- Modularity
- Direct-wire flat black ribbon cables
- Protection suite
- Brown-out, OVP, UVP, OCP, OPP, SCP, ESD, Surge, EMC
- MTBF
- >100,000 hours
