E8 / E9 / E10 Forward Series
E8 / E9 / E10 (300W–700W)Robust 300W–700W commercial power platform built with two-switch forward topology on a double-sided glass fiber PCB, providing up to 80% efficiency across 164–264V power grids.
Product Specifications
Full breakdown (11 specs) ↓Platform overview
Designed around the brief.
Built to rigorous industrial standards with verified thermal dynamics, precision topology control, and high-efficiency power delivery engineered for heavy compute demands.
≥90%
80 PLUS Gold certified
≤50 µs
Fast recovery response
9-Fold
Hardware safety suite
>100k h
MTBF industrial rating
Custom wattage bins (550W–1050W), bespoke cable harness lengths, custom fan curves, and private label chassis grilles available for enterprise orders.
Inquire for custom platform specsTwo-switch forward topology delivering rock-solid stability and up to 80% typical efficiency
Configuration and availability require confirmation for the final product program.
High-grade double-sided glass fiber PCB layout improving mechanical durability and thermal spread
Configuration and availability require confirmation for the final product program.
Smart temperature control fan starting at a whisper-quiet 900 RPM floor
Configuration and availability require confirmation for the final product program.
Wide high-voltage 164–264V operational threshold resisting power surges and dips
Configuration and availability require confirmation for the final product program.
Low ripple output design extending motherboard and solid-state drive operational lifespan
Configuration and availability require confirmation for the final product program.
Comprehensive safety protections against over-voltage, short-circuit, and power overload
Configuration and availability require confirmation for the final product program.
High-speed 50µs transient response keeping pace with modern CPU clock bursts
Configuration and availability require confirmation for the final product program.
PCIe 6+2Pin connector included for dedicated graphics accelerator support
Configuration and availability require confirmation for the final product program.
Architecture & Hardware Showcase
Precision engineering, inside and out.
Direct view into component selection, structural PCB layout, and thermal topology.
Chassis & Enclosure
Durable matte black / industrial enclosure designed for optimal ventilation and component protection.

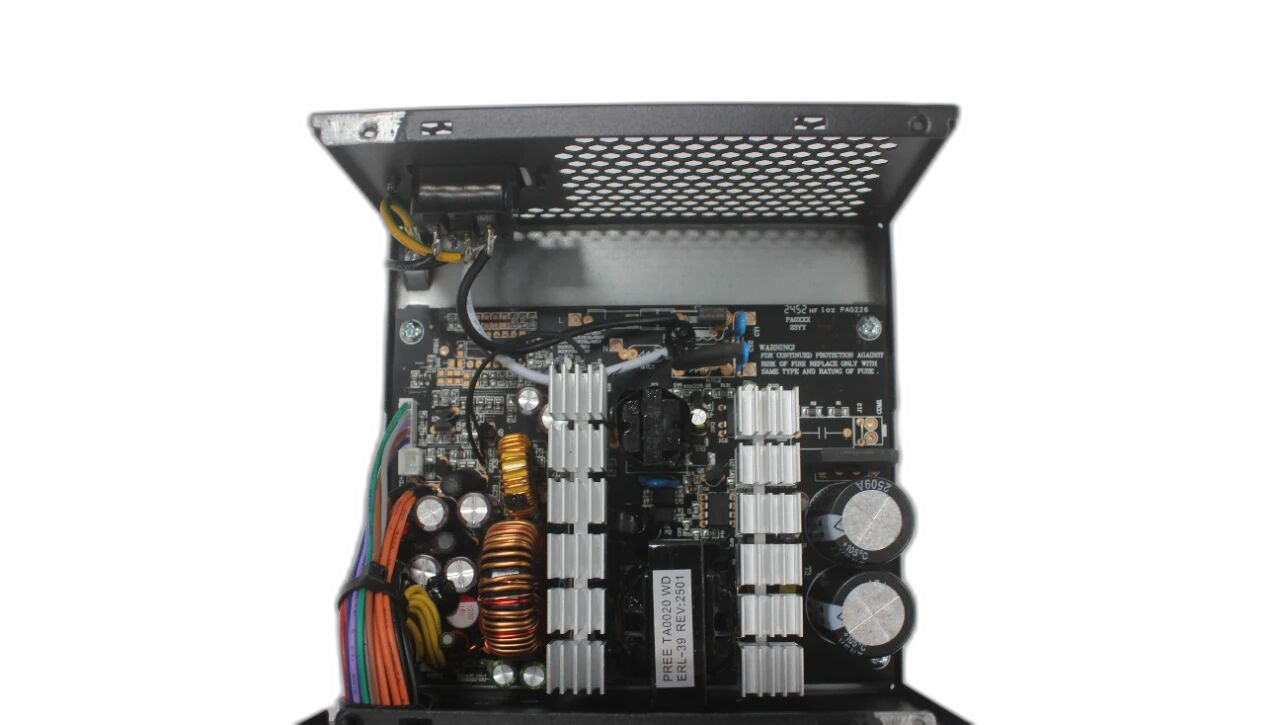

Internal Architecture & Layout 1
Internal component layout showcasing filtration stage, transformer section, and precision manufacturing.
Structured data
Specifications
The E-Series (E8, E9, E10) is engineered for commercial PC integrators, educational computing labs, and corporate workstations that require high reliability and cost-efficiency. Its two-switch forward circuit on double-sided PCB offers proven longevity and high MTBF.
E8 / E9 / E10 Forward Series Engineering Datasheet
PDF · Mechanical dimensions & pinouts
Manufacturing & Test Standards
- Chroma 8000 automated test validation
- 100% Hi-Pot & thermal burn-in tested
- Intel ATX 3.1 & PCIe 5.1 native certification
- Taiwan / Japanese 105°C primary capacitor tier
Need custom voltage tolerances, custom cable harnesses or compliance records? Contact our power engineering team →
- Rated output
- 300 W – 700 W
- Efficiency tier
- Up to 80% typical efficiency
- Topology
- Two-Switch Forward + Double-Sided PCB
- Standard
- Intel ATX 12V 2.31 / 2.52
- AC input range
- 164 – 264 V (High Voltage stability)
- Dynamic response
- ≤50 µs transient recovery time
- Ripple & noise
- +5V/+3.3V <50mV, +12V <120mV
- Cooling fan
- 120 mm smart thermal fan (min 900 RPM floor)
- Modularity
- Direct-wire with long cables for rear routing
- Protection suite
- OVP, UVP, OPP, SCP, ESD, Lighting Surge
- MTBF
- >100,000 hours
PC Power Supply Engineering
PC Power Supply OEM/ODM & Technical Support
Direct technical & commercial access for desktop, gaming rig, and workstation power supplies. Discuss wattage sizing (550W–1050W), ATX 3.1 & 12V-2x6 GPU delivery, modular cabling, and PC chassis compatibility with our engineering team.
Direct FAE evaluation for GPU transient spikes (200% excursion), 12V-2x6 cable clearance, and motherboard 24-pin compatibility within 24 hours.
Golden engineering units shipped in 3–5 days to validate PC chassis mounting, FDB fan acoustic profiles, and GPU power delivery under real loads.
Custom embossed/braided modular cables, customized casing finishes (Black/White), branded fan grilles, and bilateral NDA protection.
Complete ATE automated test reports (ripple <30mV, voltage regulation <±1.5%), cross-load efficiency curves, thermal imaging, and 3D CAD STEP files.
PC Power Supply Project Roadmap
- 1Platform & Wattage Selection: Choose standard wattage (550W–1050W), modular format (Full/Semi/Direct), or custom embossed cable lengths.
- 2Chassis & GPU Compatibility Review (<24h): Our FAEs verify 140mm chassis depth fitment, 12V-2x6 thermal safety, and thermal airflow curves.
- 3EVT Prototype & Bench Test: Receive working samples for system smoke test & motherboard validation, followed by mass production.
For urgent PC system integration, gaming rig bids, or high-volume PSU orders, contact our power supply engineering team via larry@encon.ltd for immediate assistance.
