C1000 Gold ATX 3.1
C1000 Gold (PA-0G1BB-US)Enthusiast 1000W fully modular power supply built to Intel ATX 3.1 & PCIe 5.1 standards with native 600W 12V-2x6 cable, 100% Japanese 105°C capacitors, and 135mm FDB Zero Fan cooling.
Product Specifications
Full breakdown (12 specs) ↓Platform overview
Designed around the brief.
Built to rigorous industrial standards with verified thermal dynamics, precision topology control, and high-efficiency power delivery engineered for heavy compute demands.
≥90%
80 PLUS Gold certified
≤50 µs
Fast recovery response
9-Fold
Hardware safety suite
>100k h
MTBF industrial rating
Custom wattage bins (550W–1050W), bespoke cable harness lengths, custom fan curves, and private label chassis grilles available for enterprise orders.
Inquire for custom platform specsIntel ATX 3.1 & PCIe 5.1 compliant with native 12V-2x6 connector supplying up to 600W to high-TDP graphics cards
Configuration and availability require confirmation for the final product program.

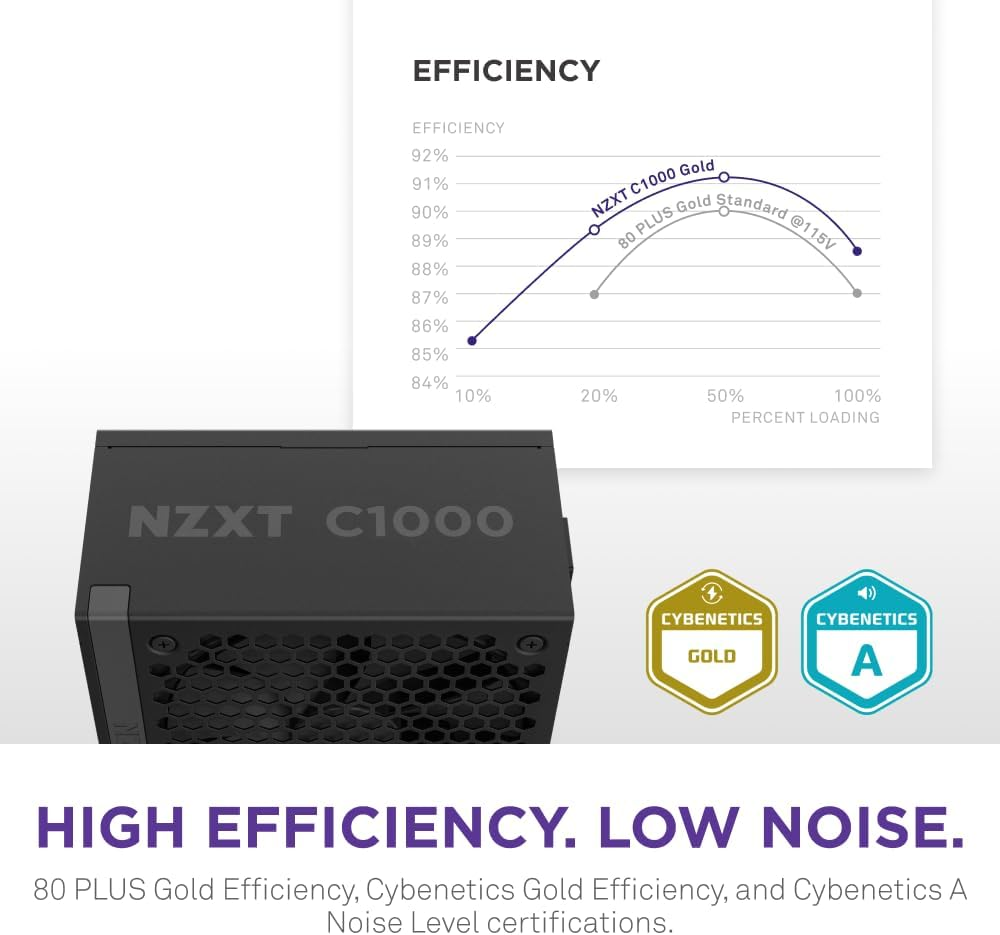

80 PLUS Gold certified efficiency reducing power consumption, heat generation, and fan noise
Configuration and availability require confirmation for the final product program.

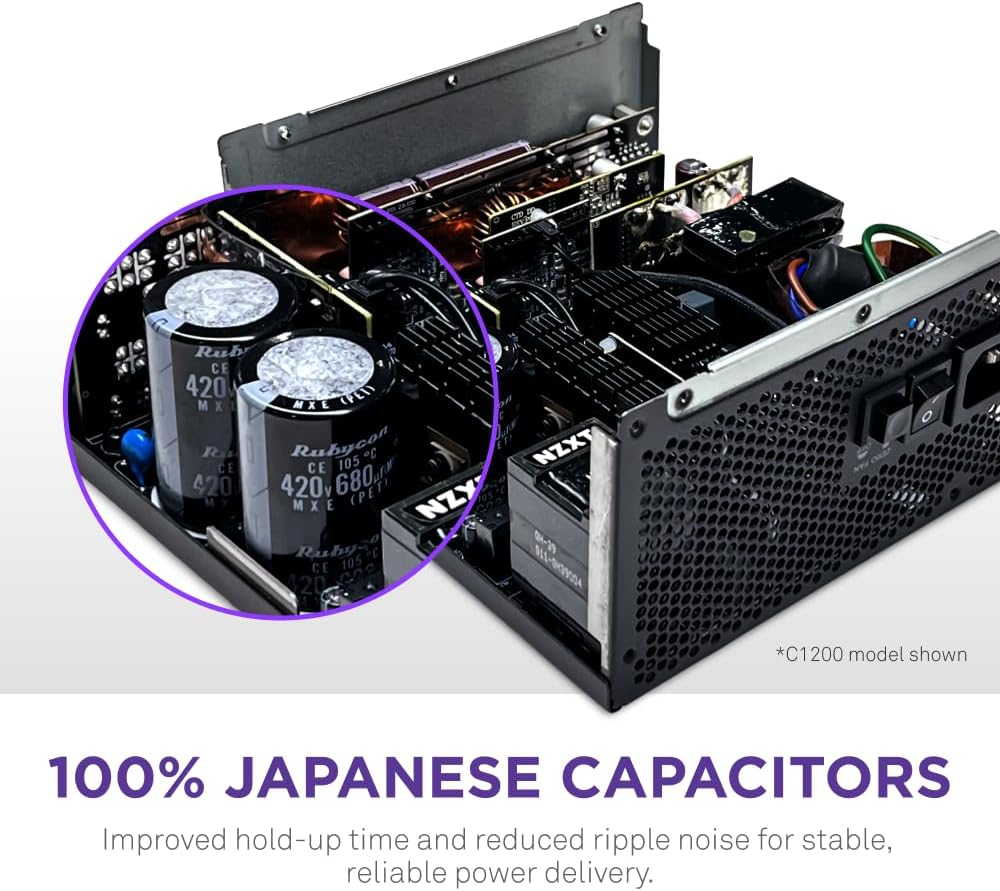

100% high-grade Japanese 105°C capacitors delivering unrivaled electrical stability and long-term lifespan
Configuration and availability require confirmation for the final product program.
135mm Fluid Dynamic Bearing (FDB) fan engineered for whisper-quiet airflow and minimal mechanical wear
Configuration and availability require confirmation for the final product program.
Hardware Zero Fan Mode button enabling true 0 RPM passive cooling during light to moderate workloads
Configuration and availability require confirmation for the final product program.
Full-bridge LLC resonant converter paired with synchronous DC-DC rectification for ultra-tight voltage regulation
Configuration and availability require confirmation for the final product program.
Compact 150mm chassis depth providing superior clearance for cable routing in standard ATX cases
Configuration and availability require confirmation for the final product program.
Embossed soft-texture black modular cables offering effortless bending and premium custom aesthetics
Configuration and availability require confirmation for the final product program.
Architecture & Hardware Showcase
Precision engineering, inside and out.
Direct view into component selection, structural PCB layout, and thermal topology.
Chassis & Fan Grille
Minimalist matte black chassis with perforated NZXT circular fan grille.

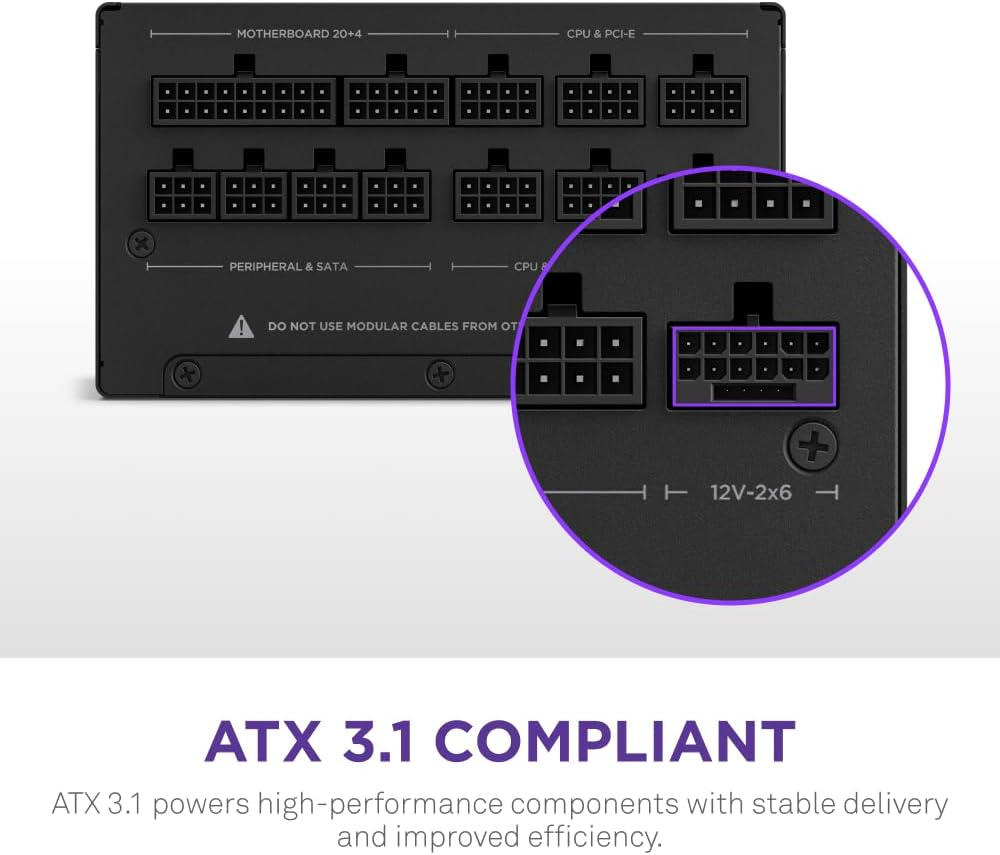

Modular Interface
Clearly labeled modular panel including dedicated 12V-2x6 PCIe 5.1 socket.

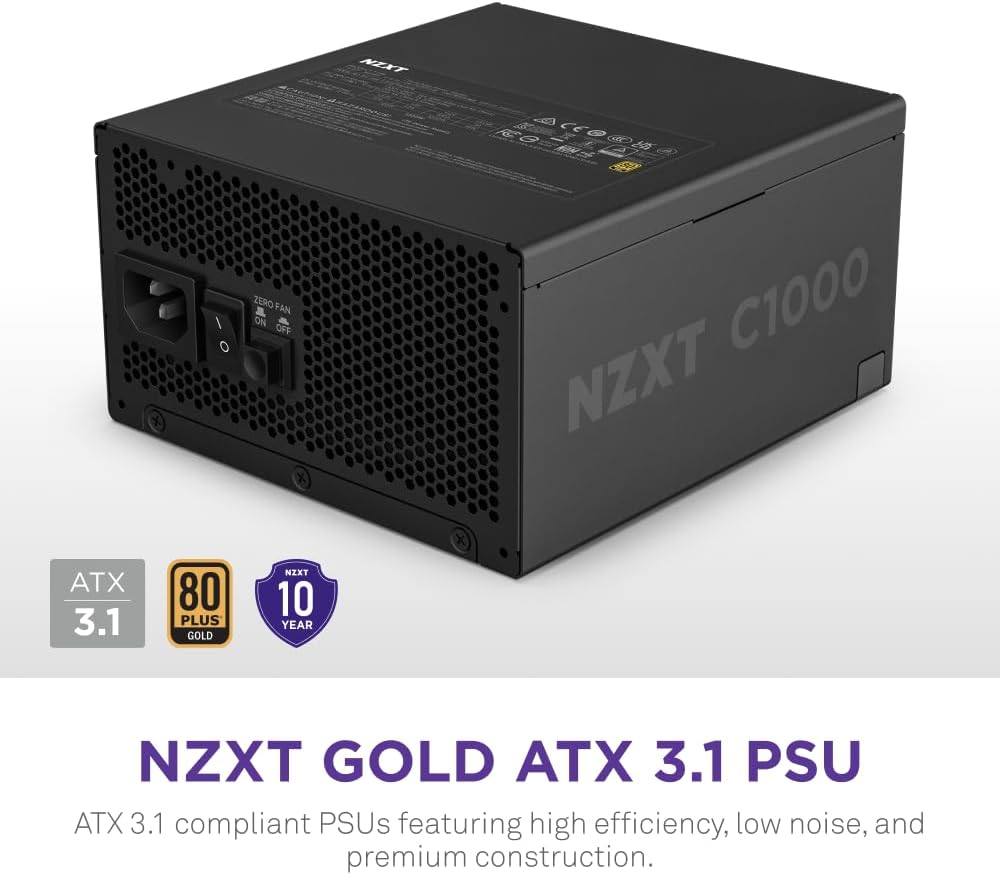

Zero Fan Control
Rear panel featuring power rocker and hardware Zero Fan push button.
Side Branding
Clean debossed NZXT brand logo and durable powder-coated steel casing.

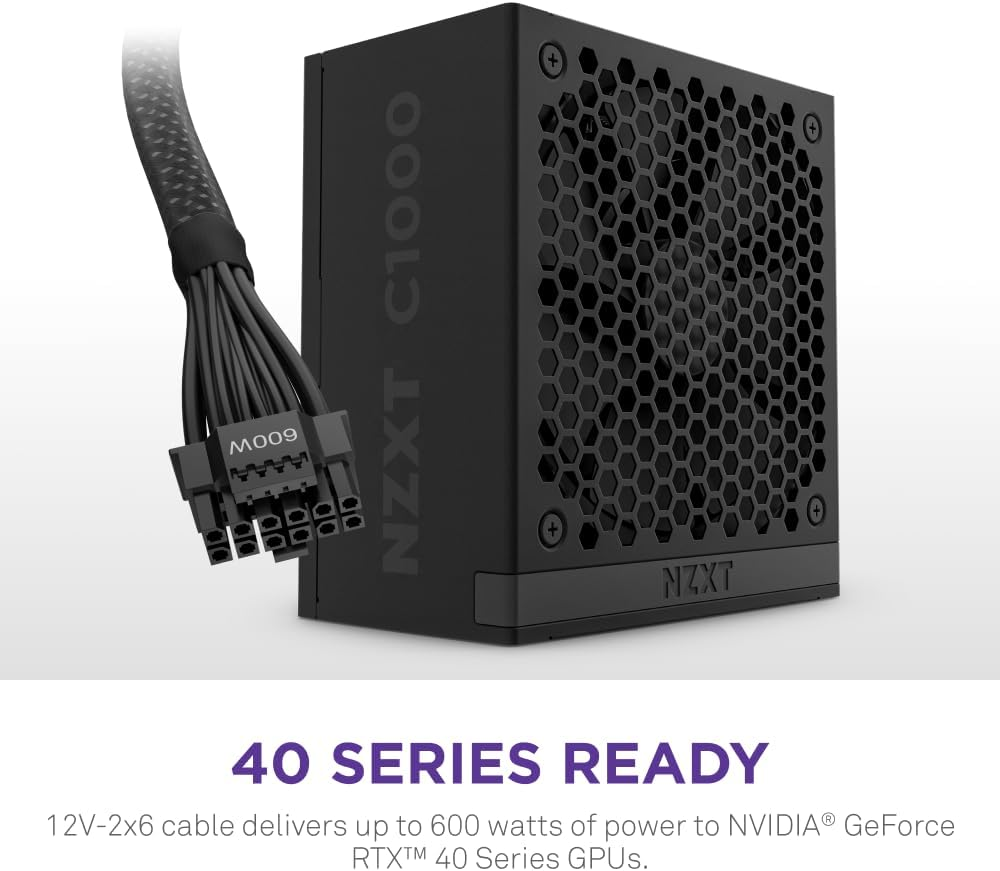

Native 12V-2x6 Cable
High-current 16-pin 12V-2x6 cable delivering up to 600W for GeForce RTX 40/50 series.
Complete Modular Cable Harness
Full set of flexible embossed black modular cables and storage bag.
Structured data
Specifications
The C1000 Gold ATX 3.1 power supply delivers pristine, efficient power for next-generation gaming platforms and high-load workstations. Designed in strict compliance with Intel ATX 3.1 and PCIe 5.1 specifications, it withstands 200% peak power excursion surges and features a native 12V-2x6 connector delivering up to 600W of uninterrupted GPU power. Built with 100% Japanese 105°C capacitors and full-bridge LLC resonant architecture, it guarantees ultra-clean voltage delivery. The compact 150mm chassis houses a 135mm FDB fan with a hardware push-button Zero Fan mode for silent passive operation under light loads.
C1000 Gold ATX 3.1 Engineering Datasheet
PDF · Mechanical dimensions & pinouts
Manufacturing & Test Standards
- Chroma 8000 automated test validation
- 100% Hi-Pot & thermal burn-in tested
- Intel ATX 3.1 & PCIe 5.1 native certification
- Taiwan / Japanese 105°C primary capacitor tier
Need custom voltage tolerances, custom cable harnesses or compliance records? Contact our power engineering team →
- Rated output
- 1000 W continuous
- Efficiency tier
- 80 PLUS Gold (≥90.5% typical load)
- Topology
- Active PFC + Full-Bridge LLC + DC-DC
- Standard
- Intel ATX 3.1 / PCIe 5.1 Native
- AC input range
- 100 – 240 V AC (50 – 60 Hz full range)
- Cooling fan
- 135 mm Fluid Dynamic Bearing (FDB) fan
- Modularity
- Full Modular (embossed flexible black cables)
- Protection suite
- OVP, UVP, OCP, OPP, SCP, OTP
- PCIe 5.1 connector
- Native 12V-2x6 (16-Pin) up to 600W
- Capacitors
- 100% Japanese 105°C electrolytic & solid capacitors
- Dimensions
- 150 mm x 150 mm x 86 mm (compact 150mm depth)
- Zero fan mode
- Push-button selectable 0 RPM silent fan profile
PC Power Supply Engineering
PC Power Supply OEM/ODM & Technical Support
Direct technical & commercial access for desktop, gaming rig, and workstation power supplies. Discuss wattage sizing (550W–1050W), ATX 3.1 & 12V-2x6 GPU delivery, modular cabling, and PC chassis compatibility with our engineering team.
Direct FAE evaluation for GPU transient spikes (200% excursion), 12V-2x6 cable clearance, and motherboard 24-pin compatibility within 24 hours.
Golden engineering units shipped in 3–5 days to validate PC chassis mounting, FDB fan acoustic profiles, and GPU power delivery under real loads.
Custom embossed/braided modular cables, customized casing finishes (Black/White), branded fan grilles, and bilateral NDA protection.
Complete ATE automated test reports (ripple <30mV, voltage regulation <±1.5%), cross-load efficiency curves, thermal imaging, and 3D CAD STEP files.
PC Power Supply Project Roadmap
- 1Platform & Wattage Selection: Choose standard wattage (550W–1050W), modular format (Full/Semi/Direct), or custom embossed cable lengths.
- 2Chassis & GPU Compatibility Review (<24h): Our FAEs verify 140mm chassis depth fitment, 12V-2x6 thermal safety, and thermal airflow curves.
- 3EVT Prototype & Bench Test: Receive working samples for system smoke test & motherboard validation, followed by mass production.
For urgent PC system integration, gaming rig bids, or high-volume PSU orders, contact our power supply engineering team via larry@encon.ltd for immediate assistance.
Downloads
Formal product documents are not yet available.
Ask ENCON for the latest approved datasheet or certification document.
